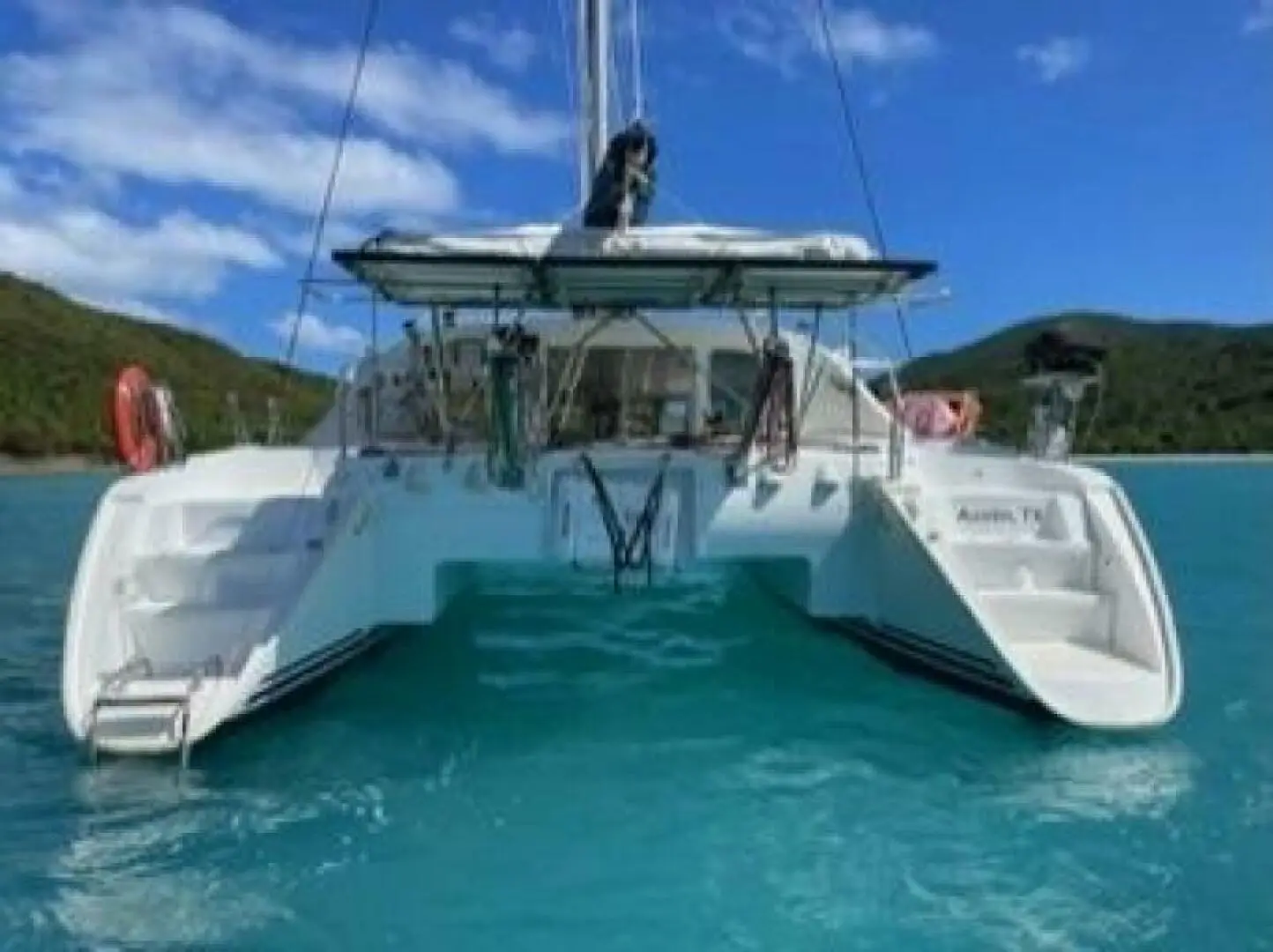

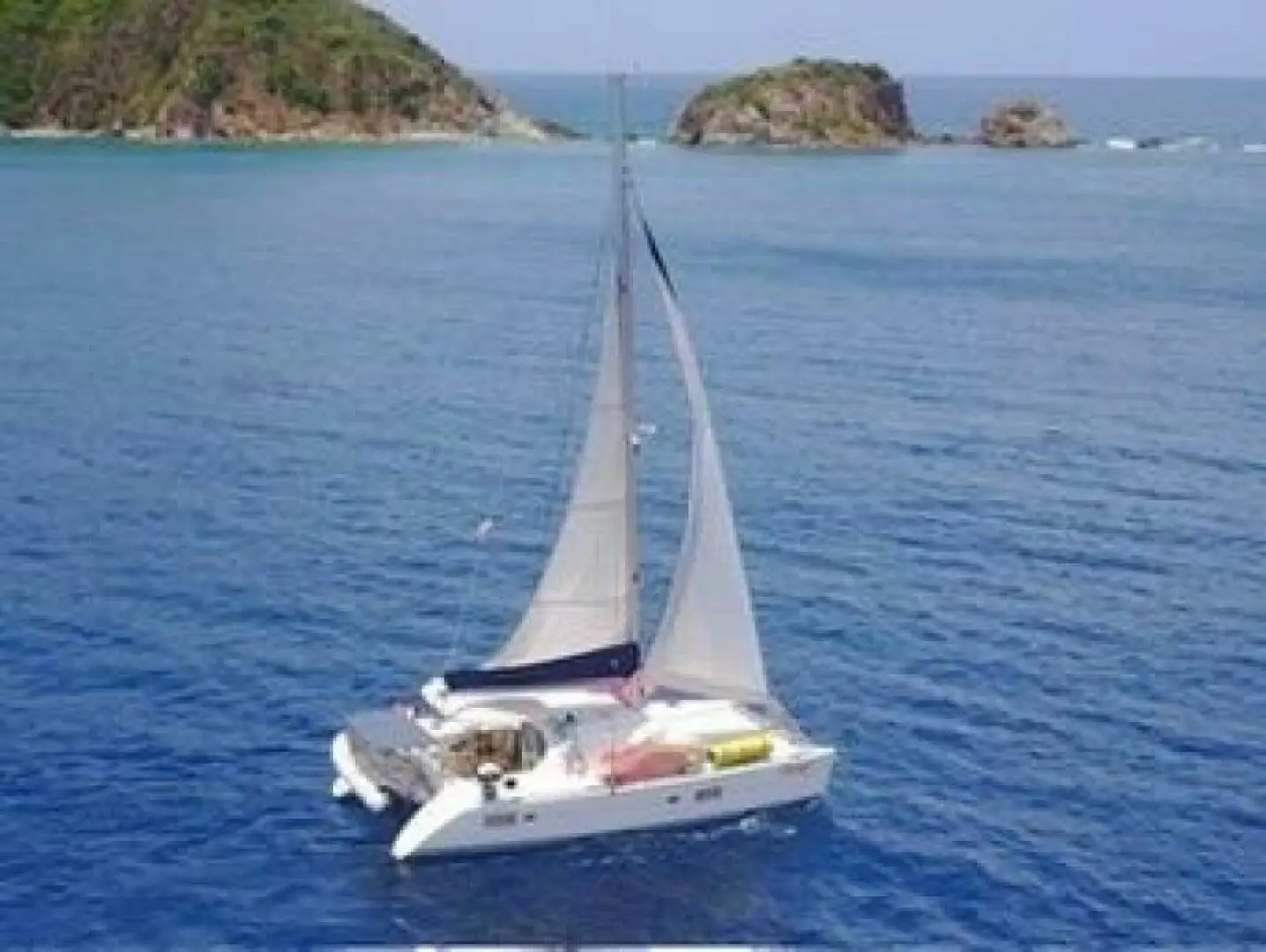

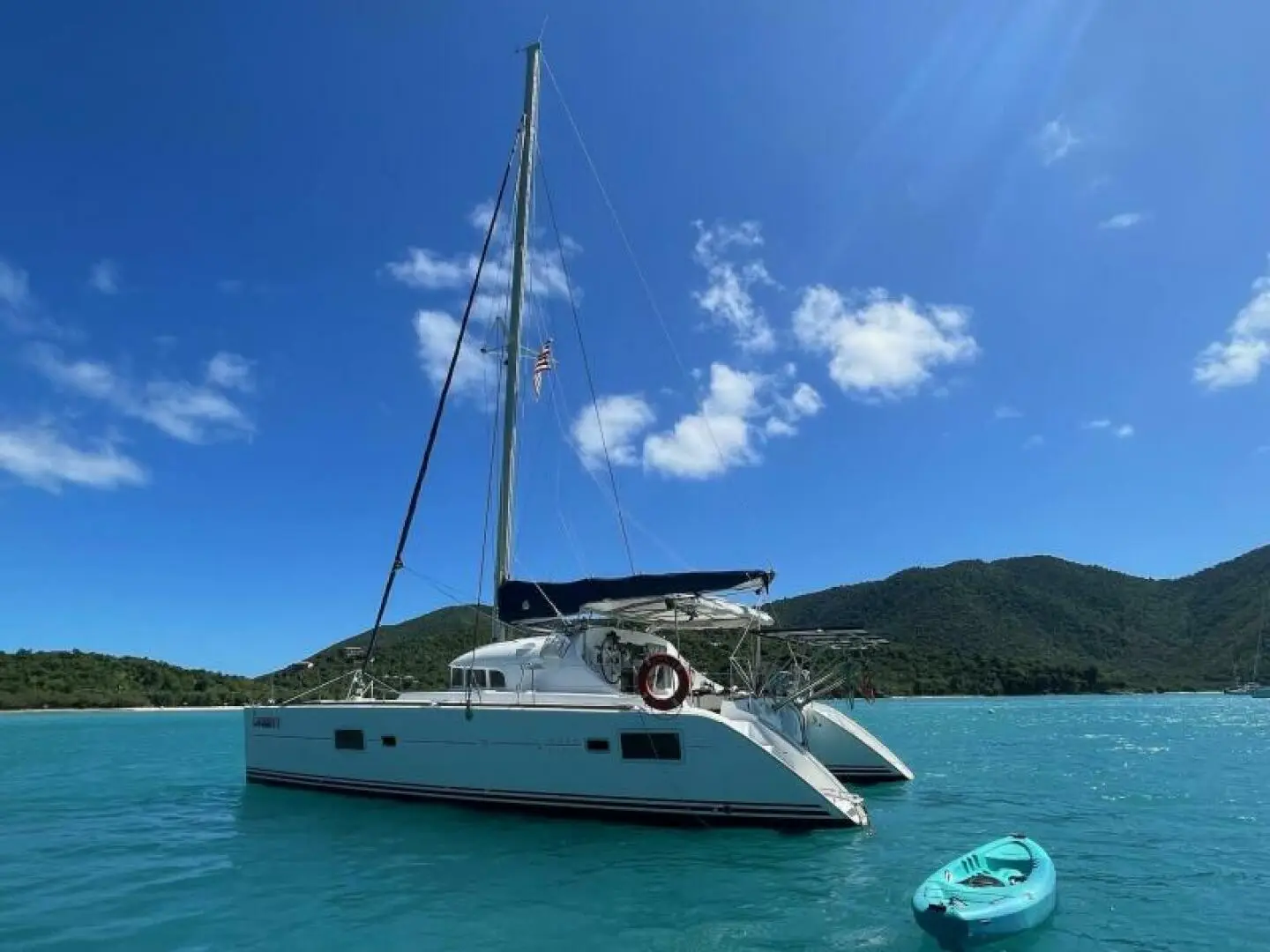

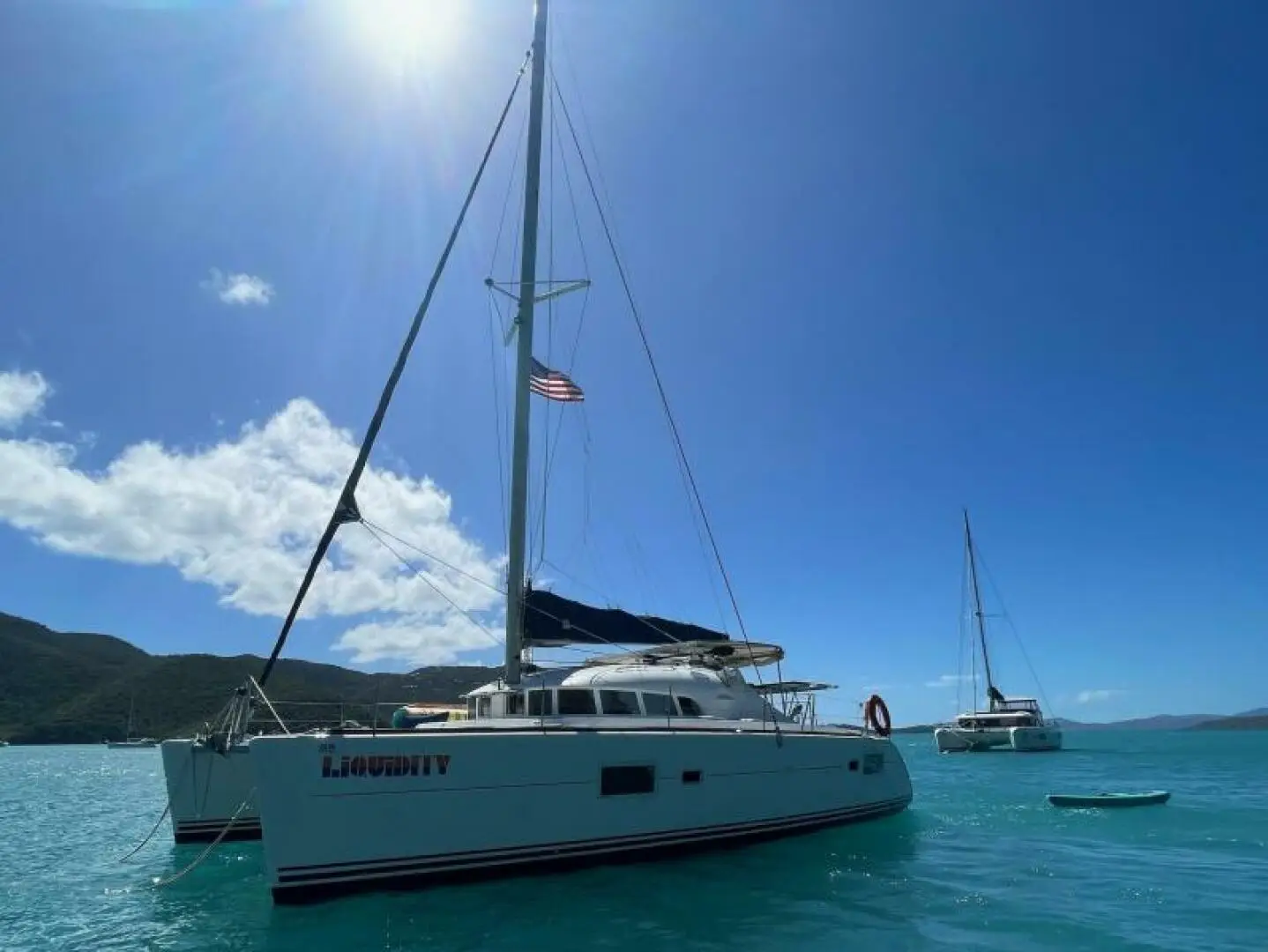

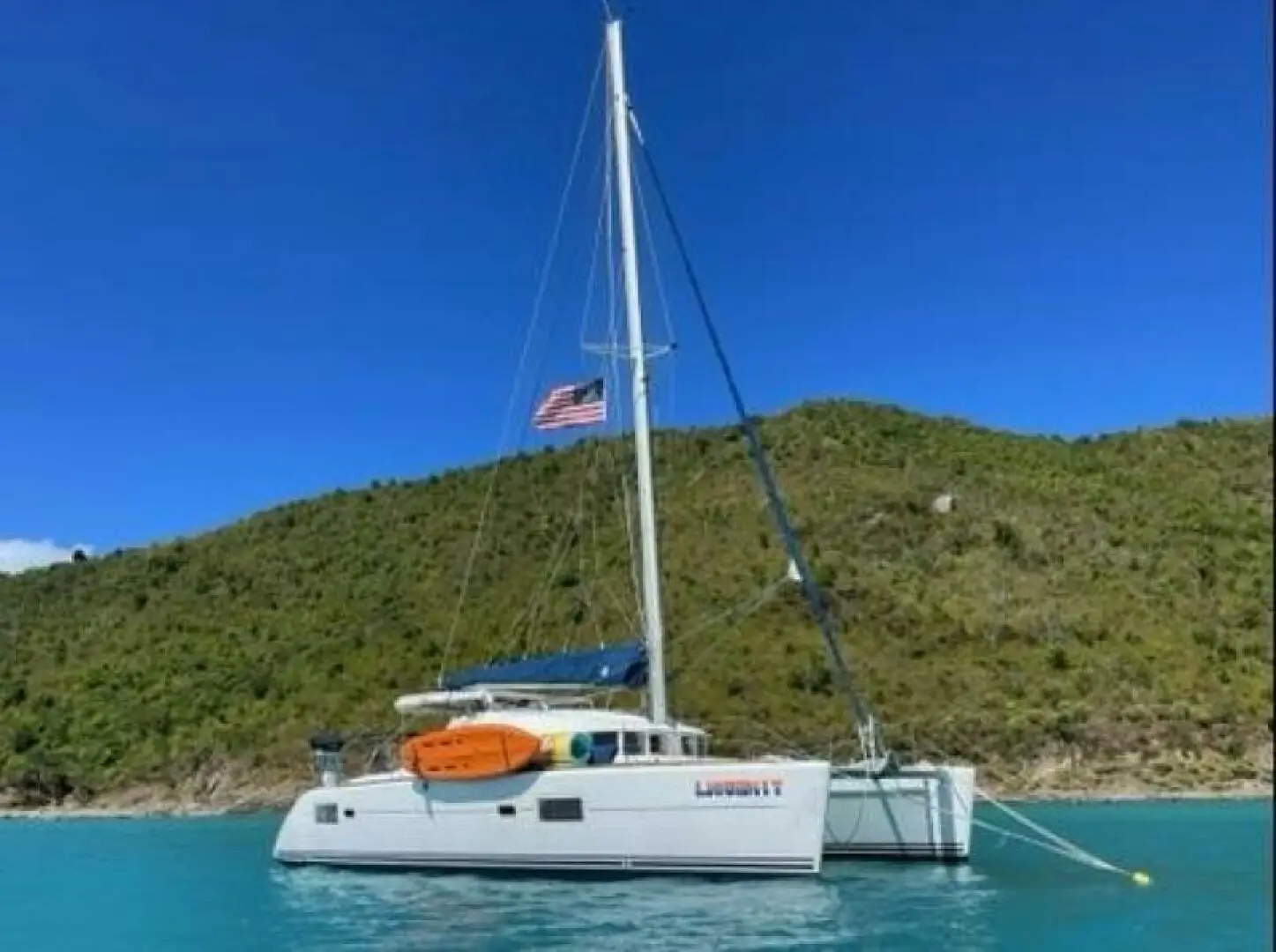

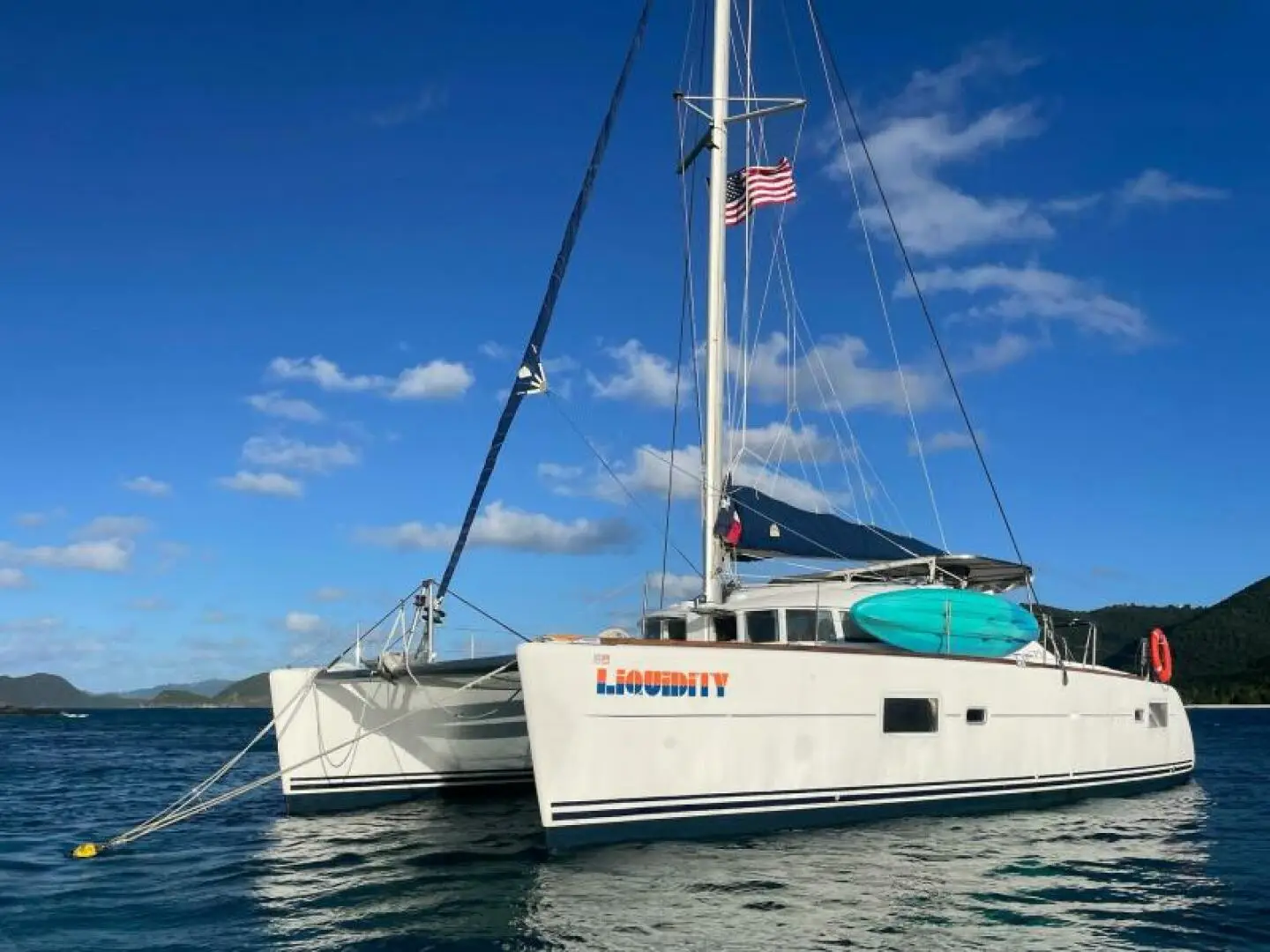

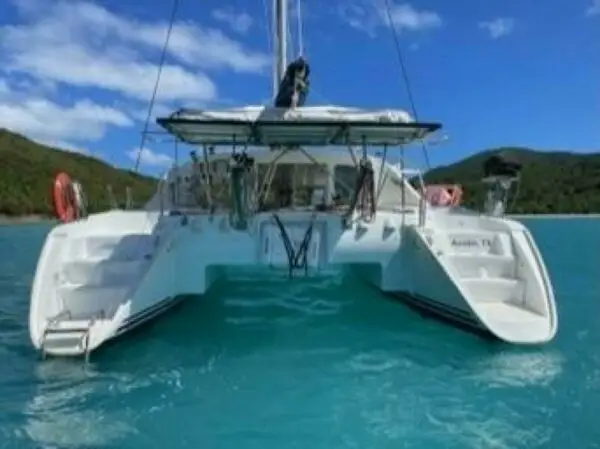

Lagoon 410-S2

• Immense cockpit/open-air salon, with direct access from dock or water via port transom
• Self-bailing cockpit with cockpit grating

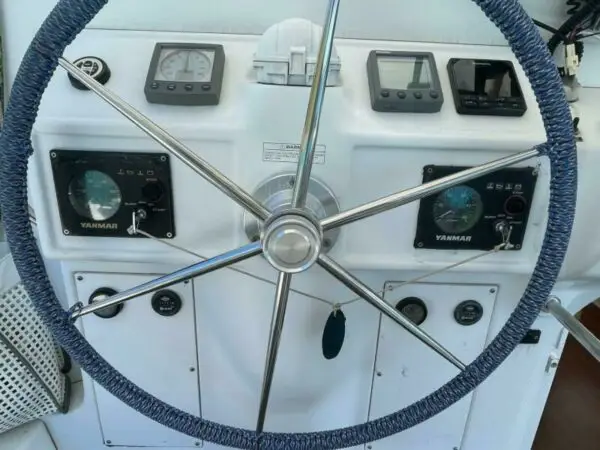

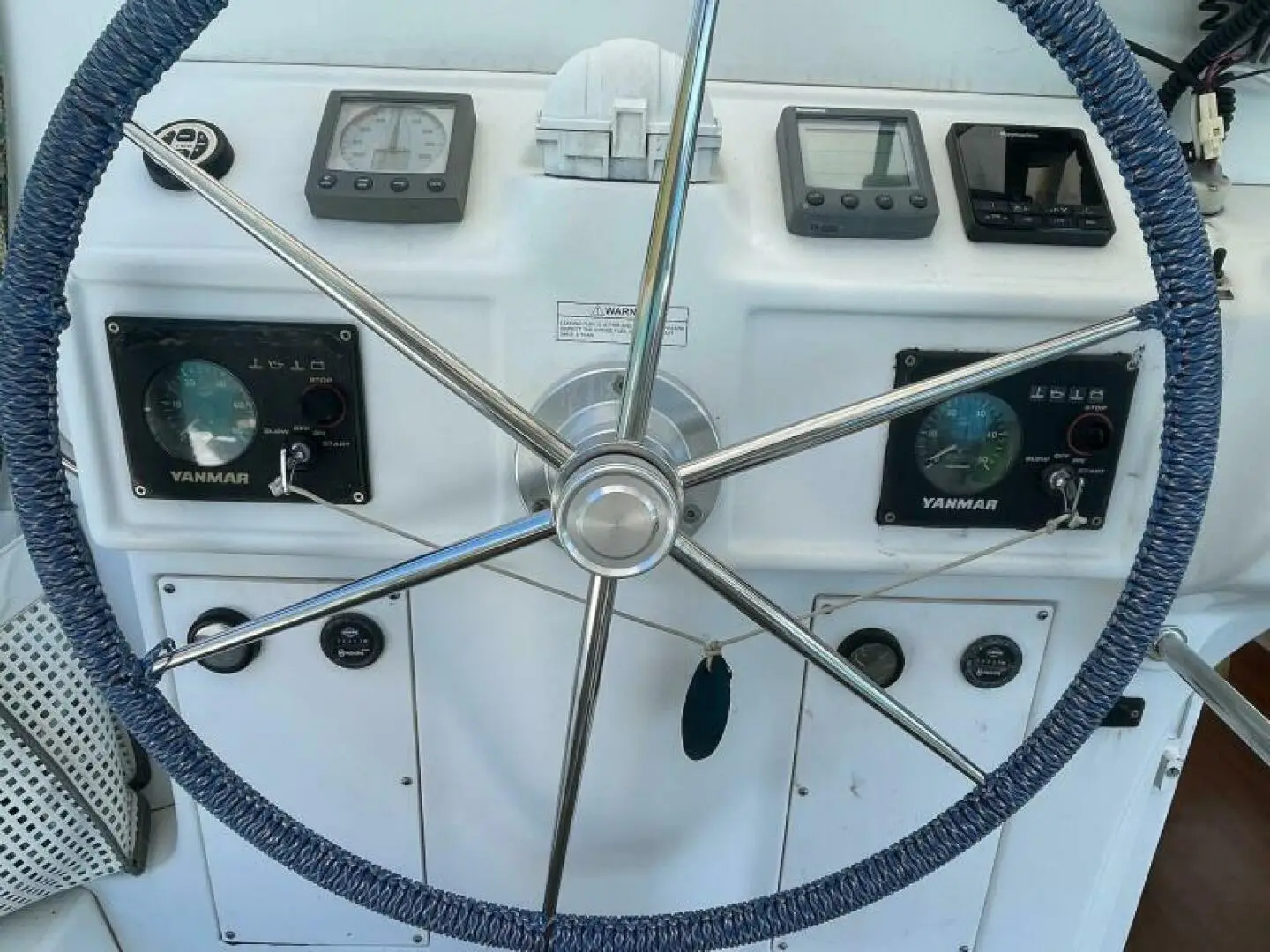

• Helm station at forward bulkhead with engine controls, engine panel, and compass, dash board for electronics
• Cable steering system
• Twin rudders with epoxy composite posts
• Emergency tiller
• 2 person helm seat

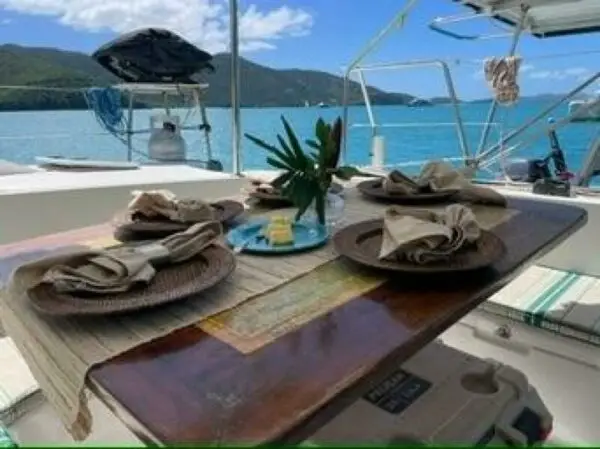

• Varnished wood cockpit table with cover
• 2 storage lockers under cockpit seats
• 1 Propane Gas vented storage locker with Shut-off valve

• Composition: fiberglass and vinylester resin
• Hull construction: foam core sandwich
• Nacelle and deck construction: balsa sandwich
• Plain laminate countermold
• Bulkheads: reinforced plywood
• Cable steering system
• Twin rudders with epoxy composite posts
• Emergency tiller

Engines, Mechanical, & Electrical

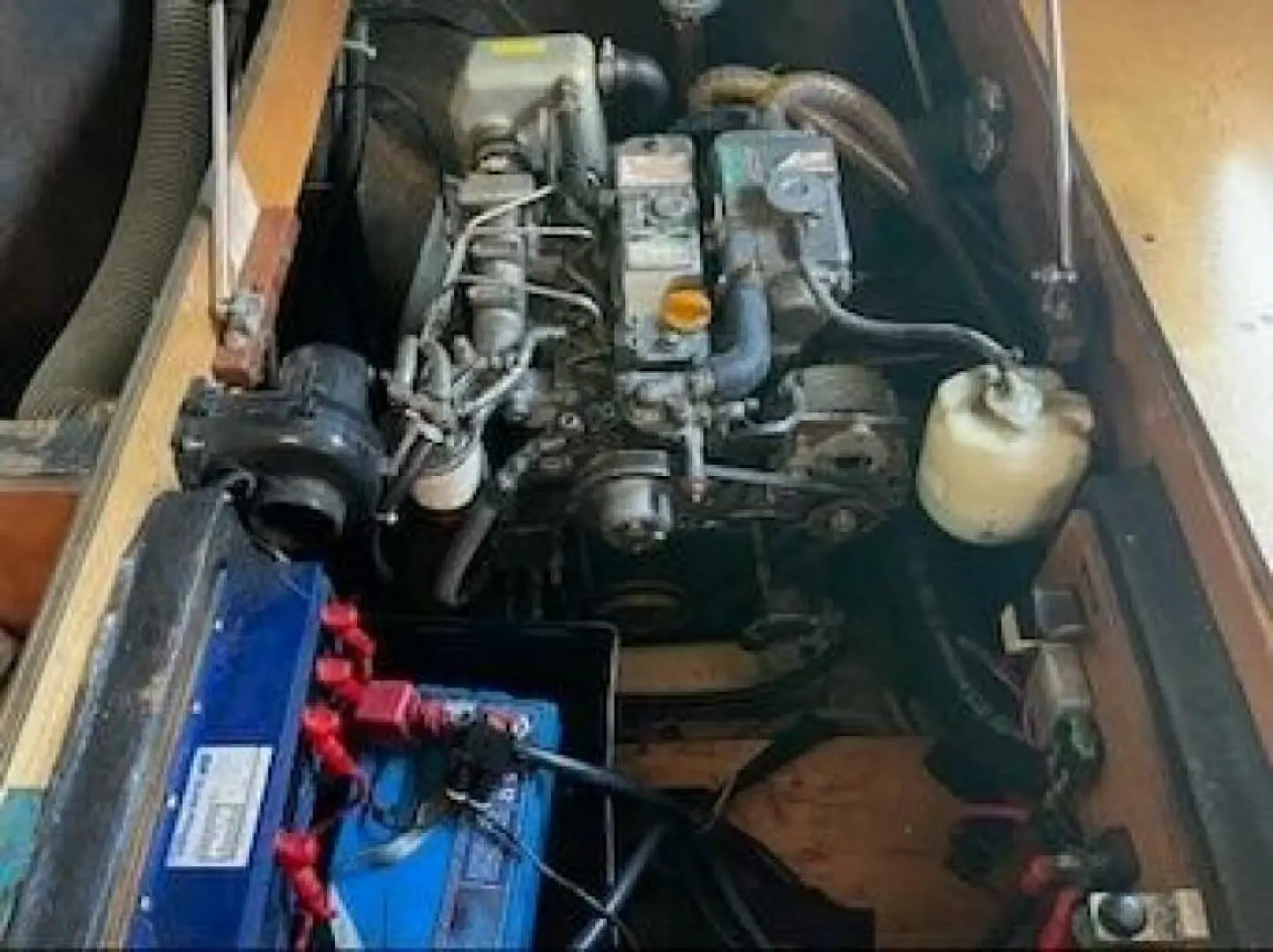

• 2 – 39.4 Hp Yanmar 3JH4E, SD50 Saildrives
• Double shift/throttle control at helm station
• Engine stop in cockpit
• Fuel Shut-off & Emergency Shut-off
• Fresh water / salt water cooling
• Engine compartment soundproofing
• Air intake at transom
• Air exhaust
• Seawater filter
• Engine access under aft cabin berths
• Fuel filters with Water Separators
• Diesel fuel tanks: 2 x 30 gal
• 2 x Automatic Bilge Pumps
• 2 x Henderson Manual Bilge Pumps

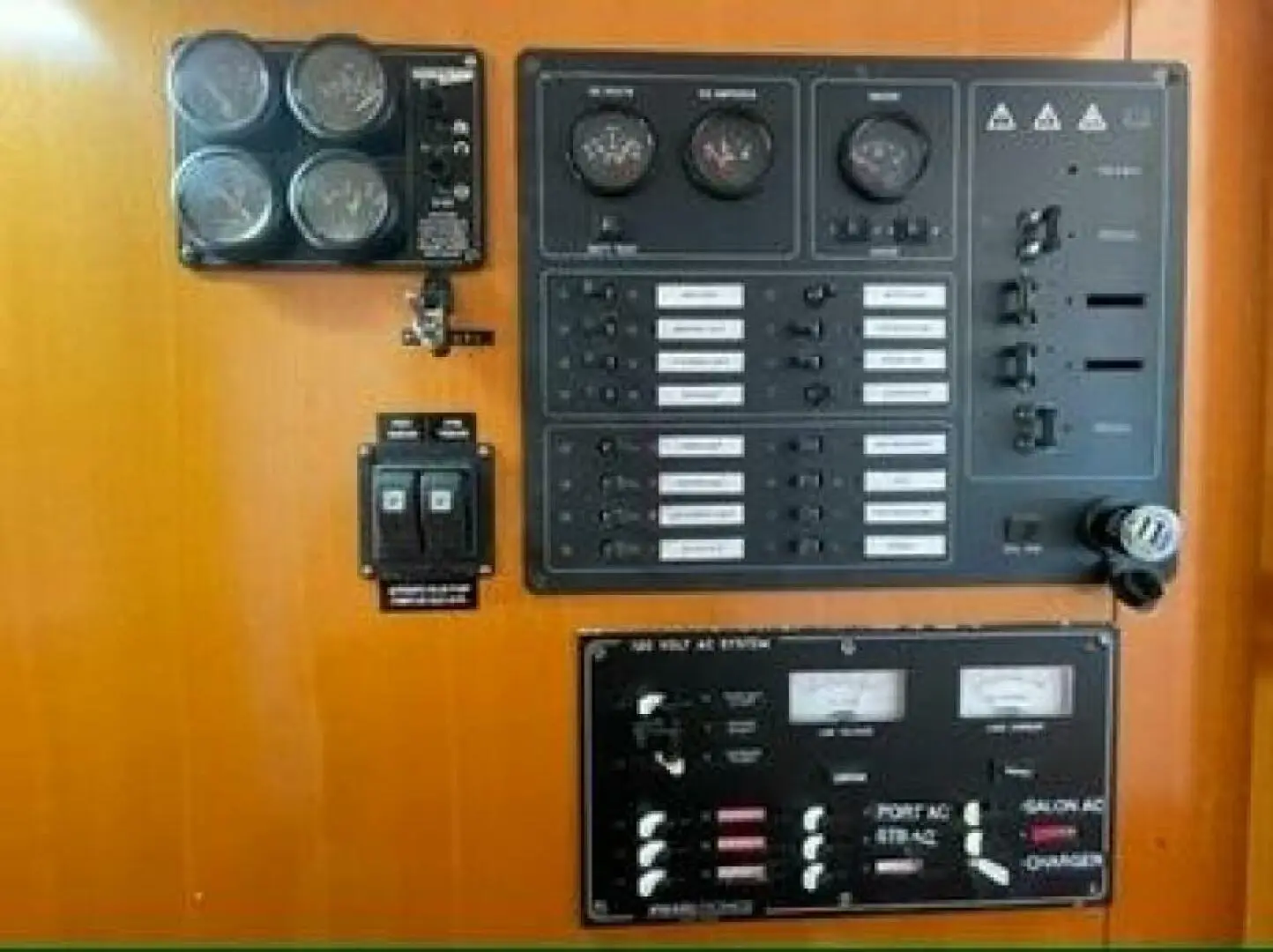

• 12 Volt DC, 110 volt AC

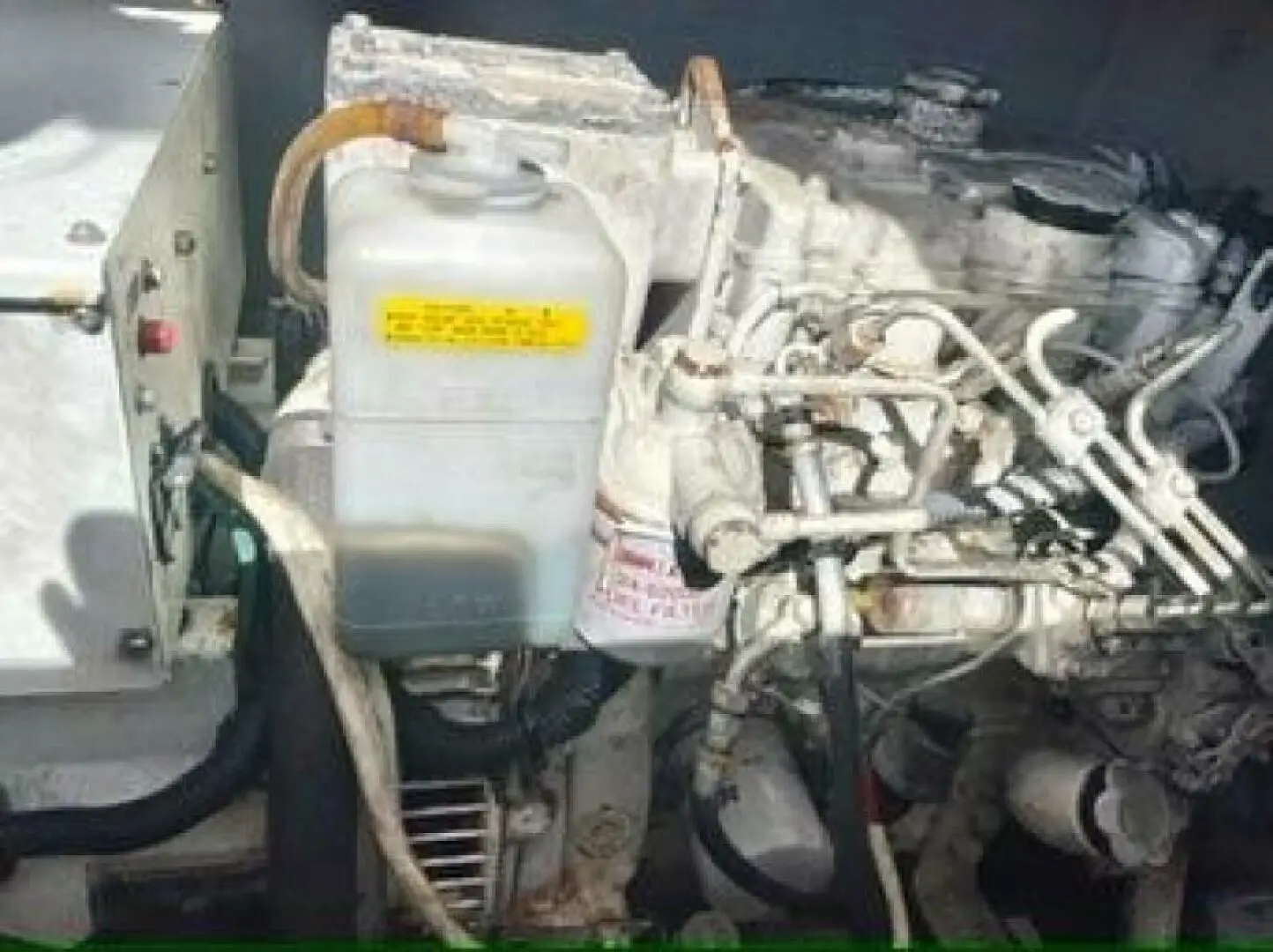

• 9 kW Northern Lights diesel generator (approx. 8597 hrs)
• Xantrex Freedom Marine 25 Inverter/Charger; 2500watt,130amp
• Xantrex Link 2000 Battery Monitoring System
• (4) 8D house batteries x 210 Ah in (1) bank (2024) AGM
• (2) Group 27 engine batteries in (2) banks
• (1) Group 27 generator battery

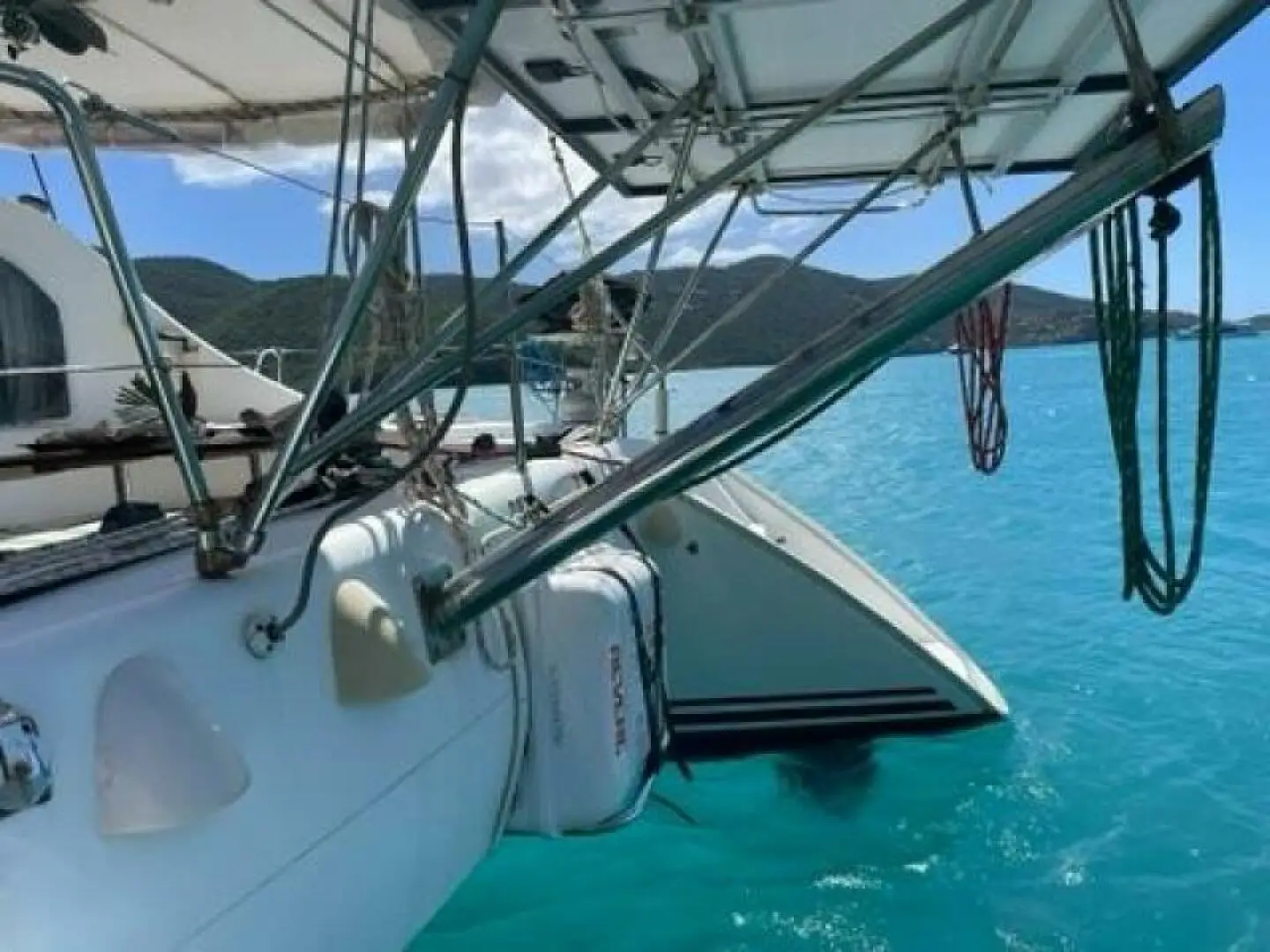

• (2) 250 (2014), (1) 270 (2017) Watt Solar Panels
• Victron Smart Solar HQ2111 PV Controller (2023)
• 50 Amp 110v Shore Power Cord
• Cruisair A/C: Stbd, Salon (16,000 btu), Port (repair required)

Sails and Hardware

• 954 sq.ft. Sail Area
• 1 Doyle Mainsail with Lazy Jacks (2017)
• 1 Doyle Genoa (2017) with Profurl furling system & UV cover
• 2 Harken 46ST 2-speed Winches (Genoa sheets) Self-tailing
• 1 Harken 32ST 2-speed Winch (Genoa Roller Furler/Dinghy Davits) Self-tailing
• 1 Harken 40STE Electric Winch (Halyards/Reefing Lines) Self-tailing
• Mainsail Traveller

Standing Rigging

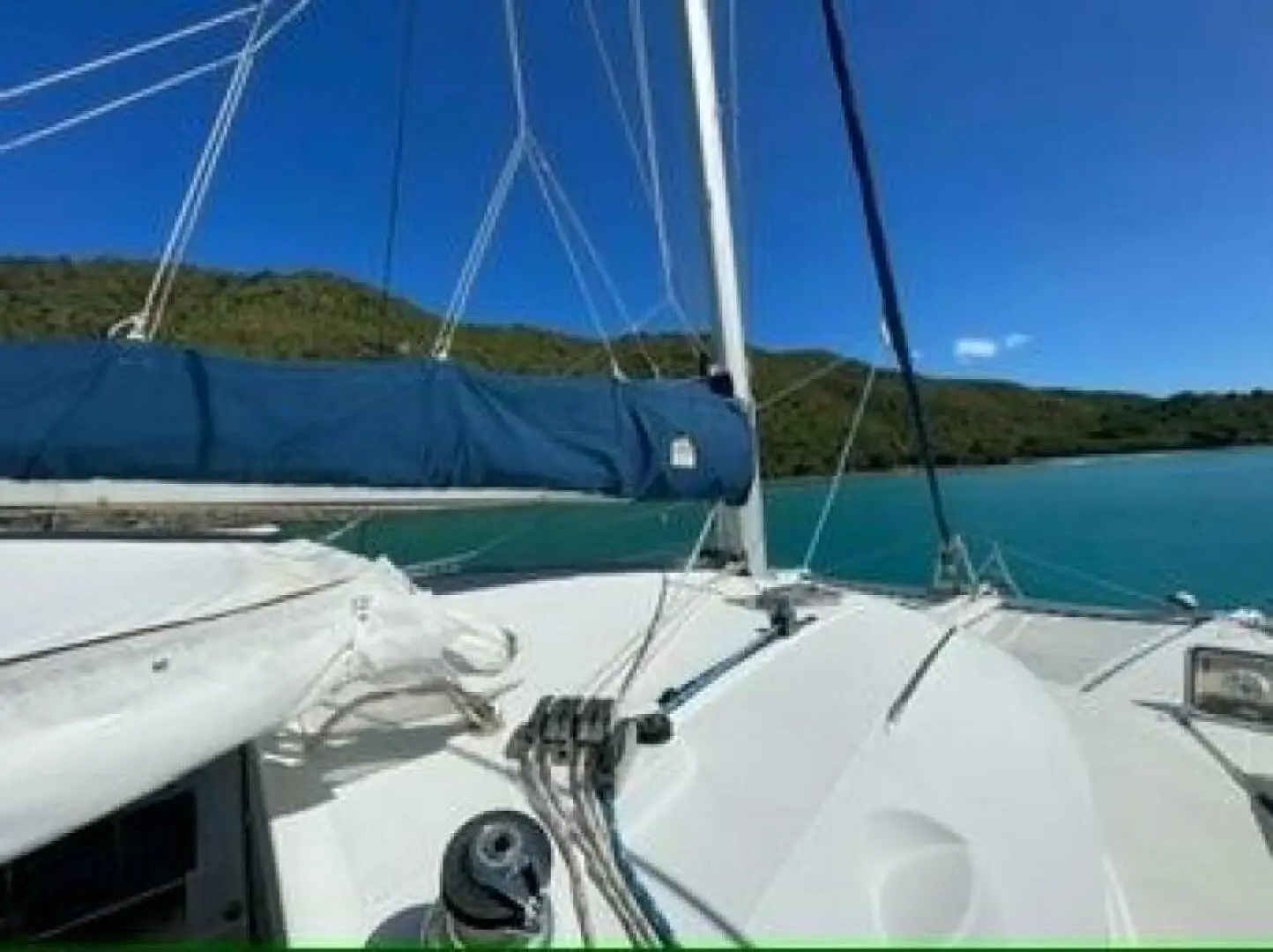

• Z-Spar anodized aluminum deck stepped Mast
• Single spreaders
• Anodized aluminum boom
• 1 set stainless steel swagged standing rigging
• 2 reinforced shroud chainplates attached to hull
• 1 forestay chainplate on crossbeam

Running Rigging

• 1 mainsail halyard, 2:1 purchase
• 1 Genoa halyard
• 1 Mainsail sheet (roof return)
• Adjustable traveler aft in cockpit
• 2 Genoa sheets
• 2 Genoa tracks
• 2 Adjustable genoa fairlead blocks
• 3 Mainsail reef lines in boom
• 1 Mainsail outhaul
• 1 Furling line
• 2 Lazy jacks
• 2 Winch handles

Accommodations

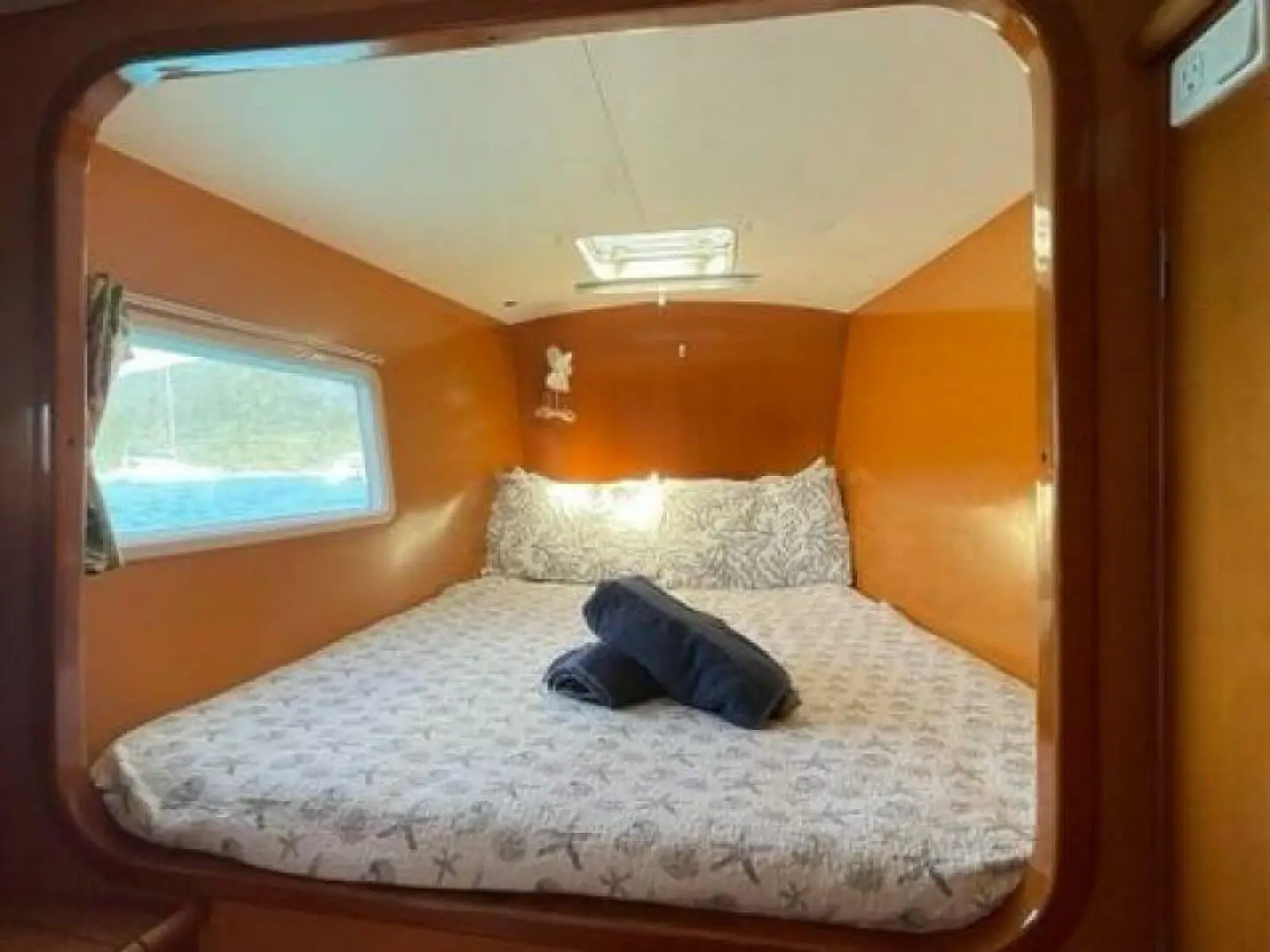

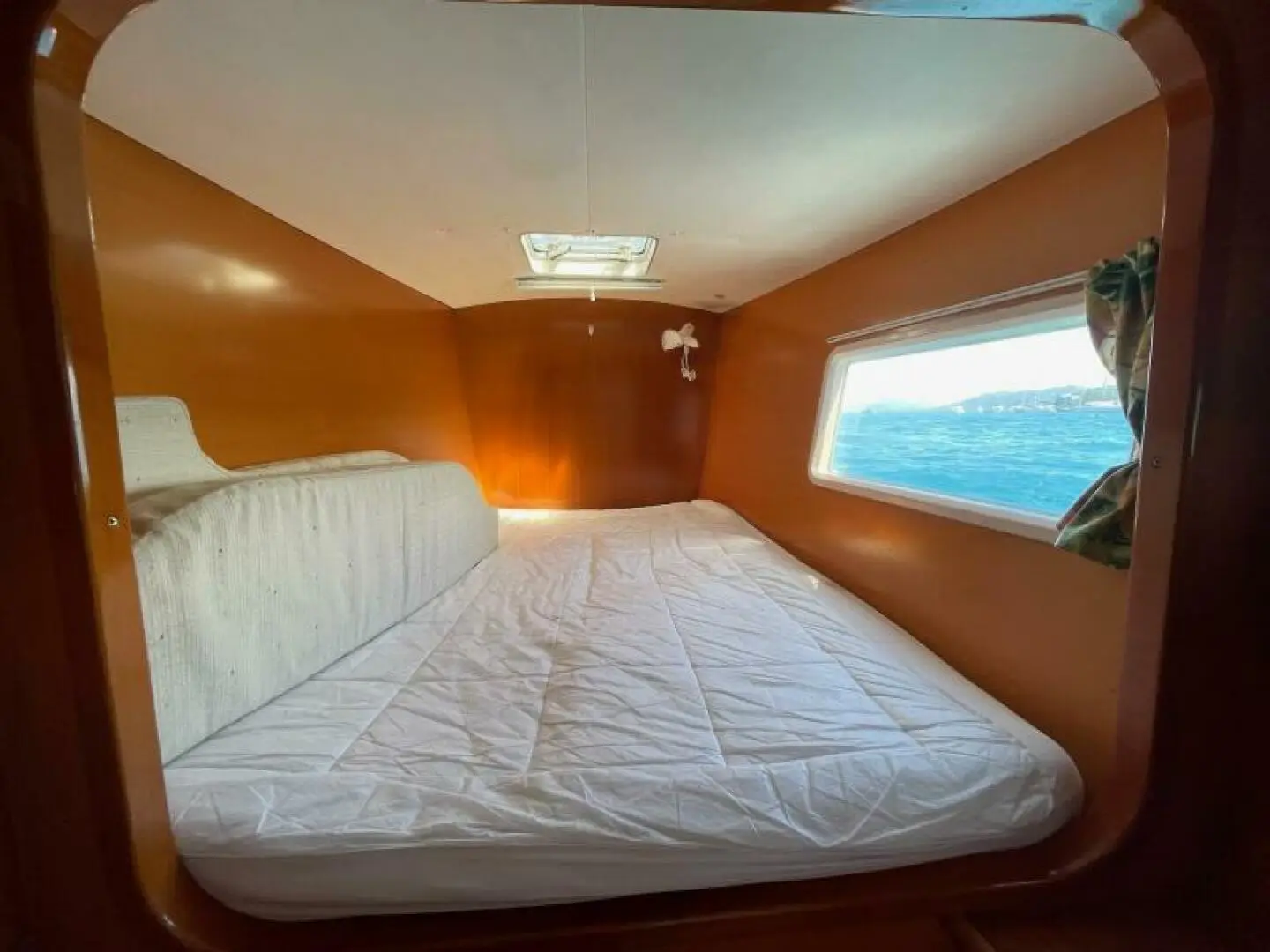

• 5 double berths (salon can be converted to a bed)
• 12v fan caframo

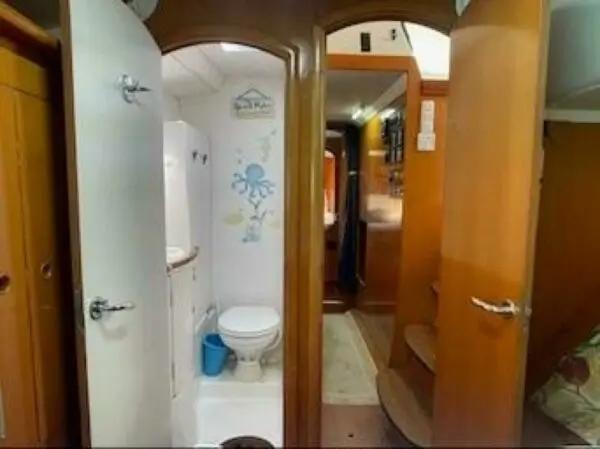

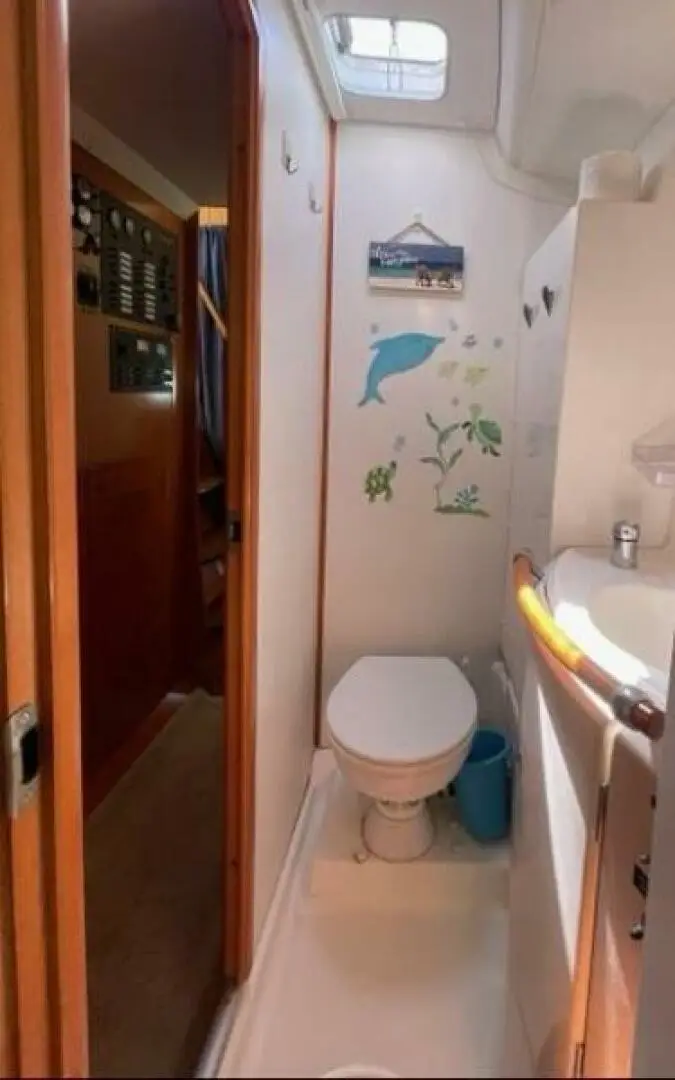

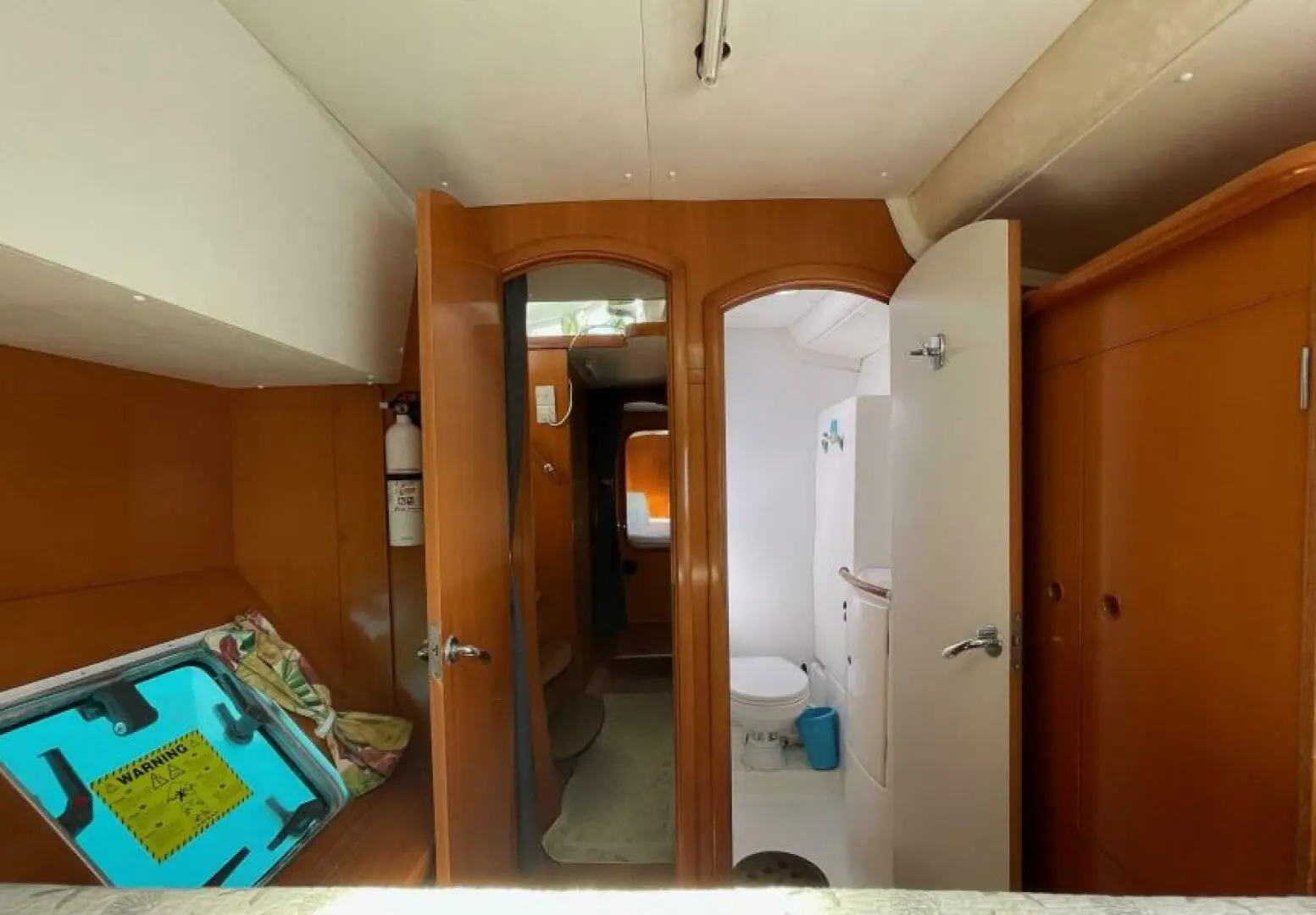

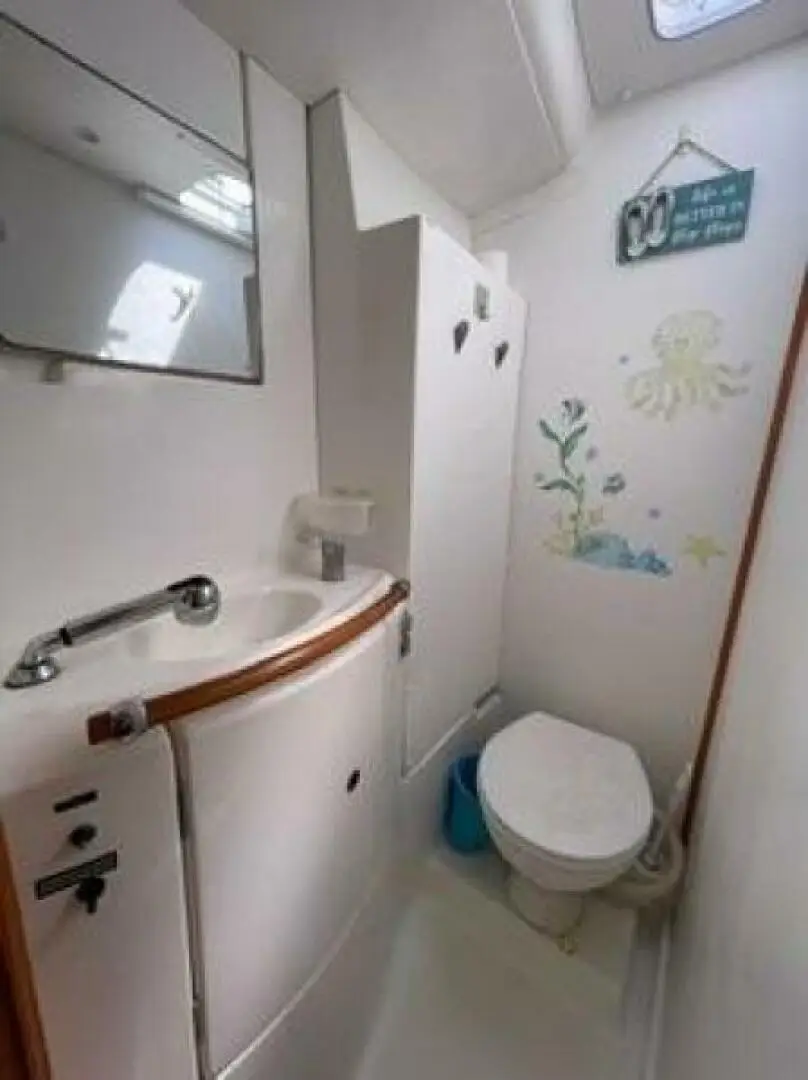

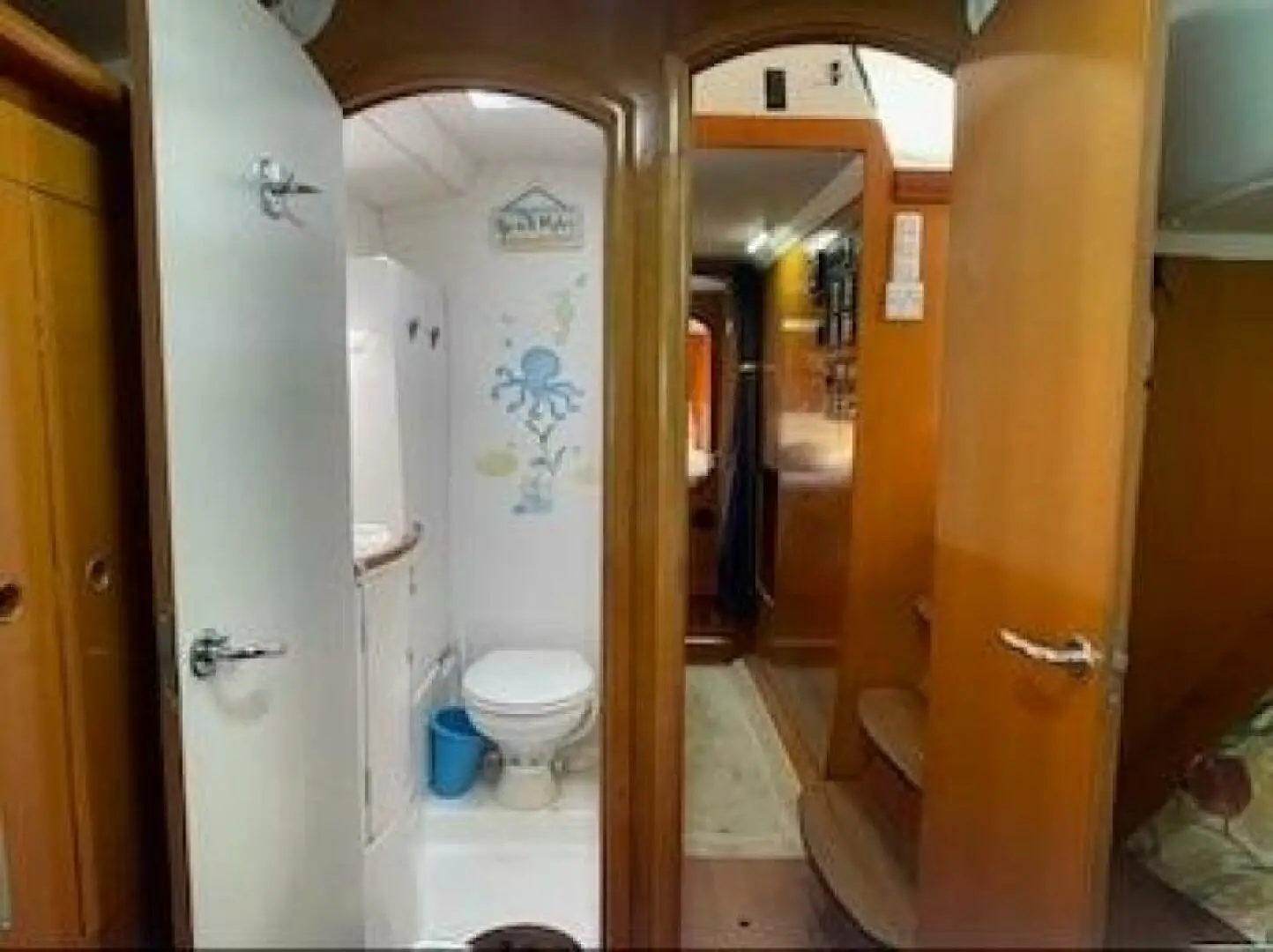

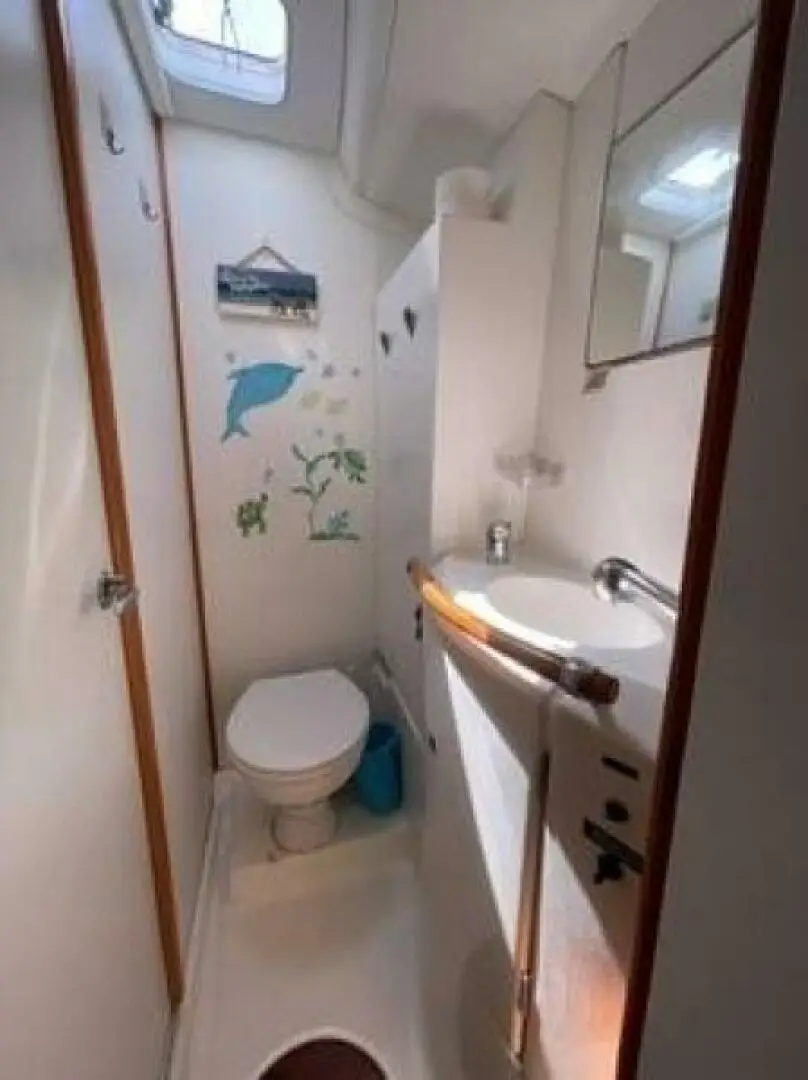

• 4 cabins with ensuite heads
• electric toilets (motors new 2021)

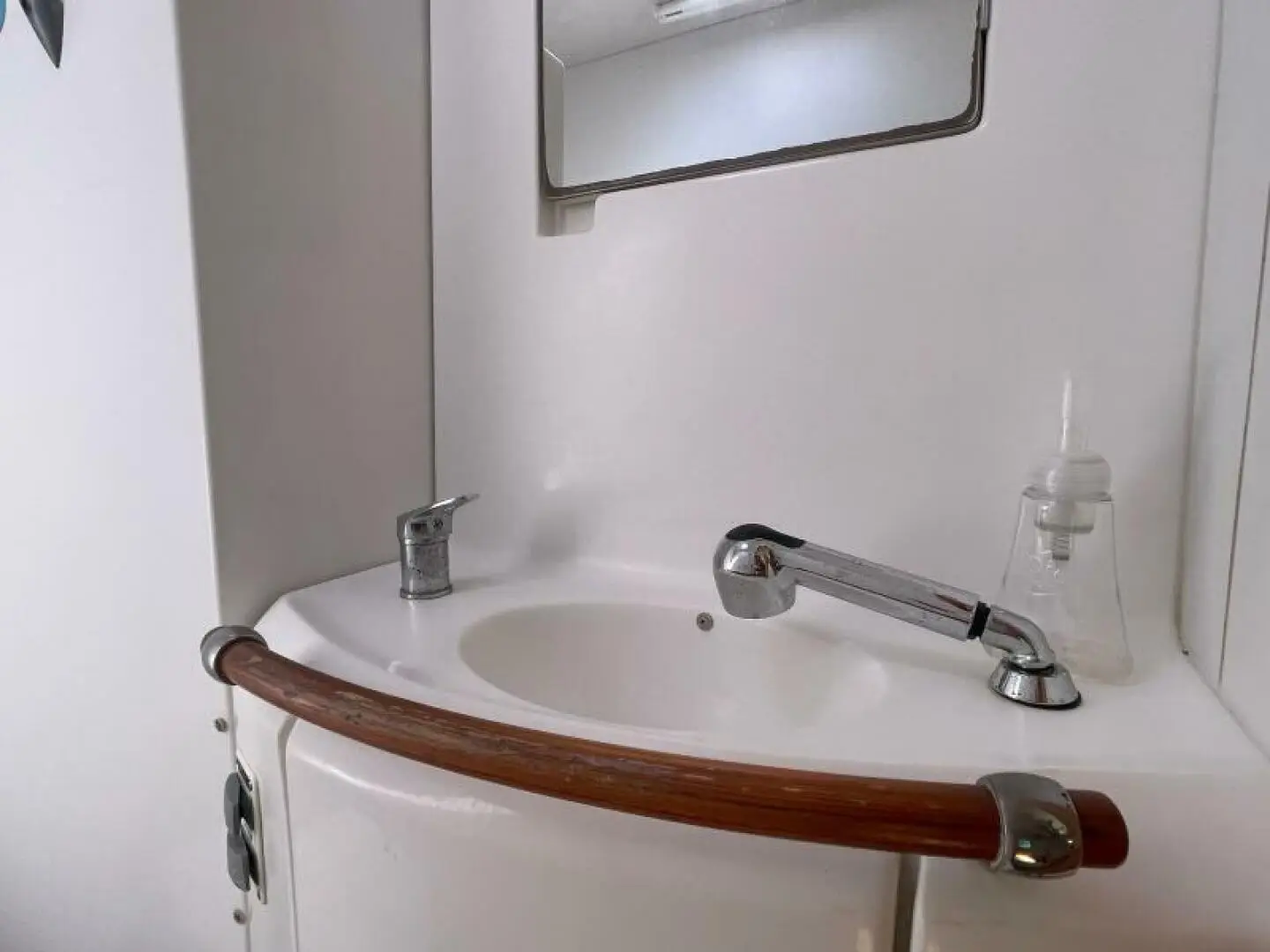

• wet heads
• spa shower handles (2021)
• One set of bed linens and towels for each cabin
• Bed pillows

Electronics & Navigational Equipment

• Raymarine ST6001 autopilot (2019)
• Raymarine ST 60+ Tridata with depth, speed, & logs (2021)
• Raymarine ST60+ Wind Instruments – Direction + Speed
•    *Needs new windvane at masthead.

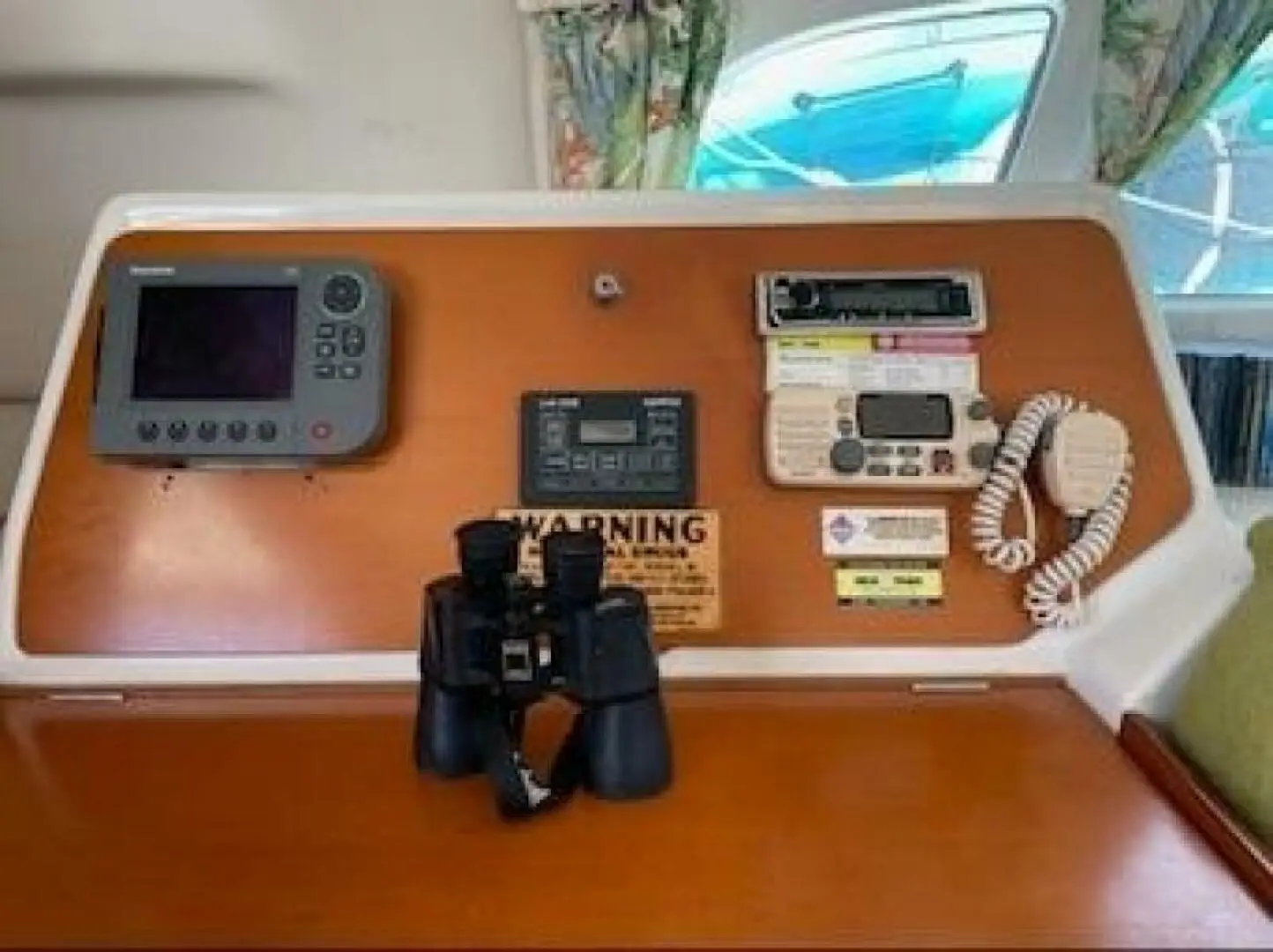

• Raymarine A70D Chartplotter (2011) at Navigation Station
• Garmin 527SX (2014) at helm station
• VHF radio (2007) at Navigation Station and Helm Station (2021)
• Compass

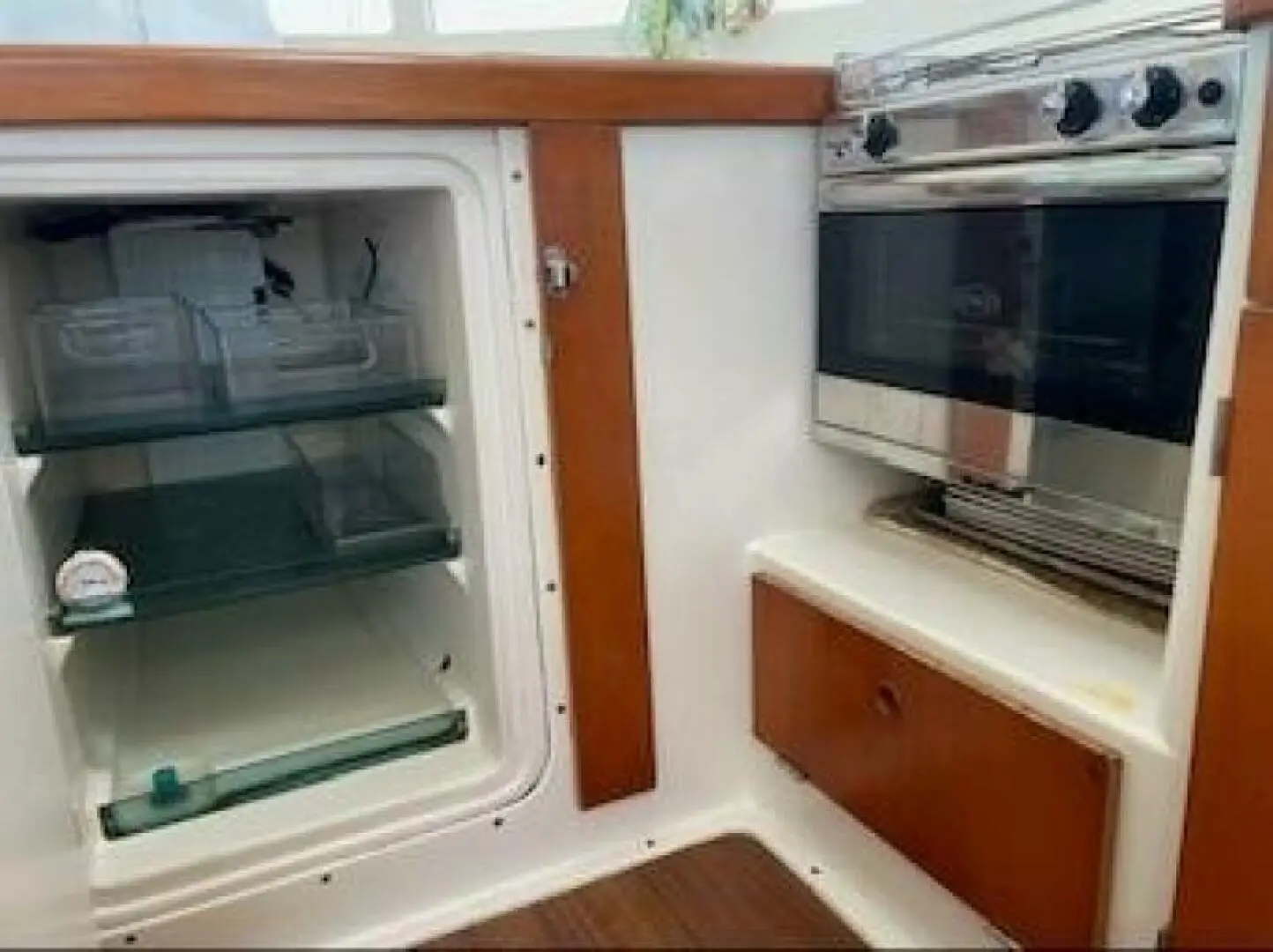

Galley

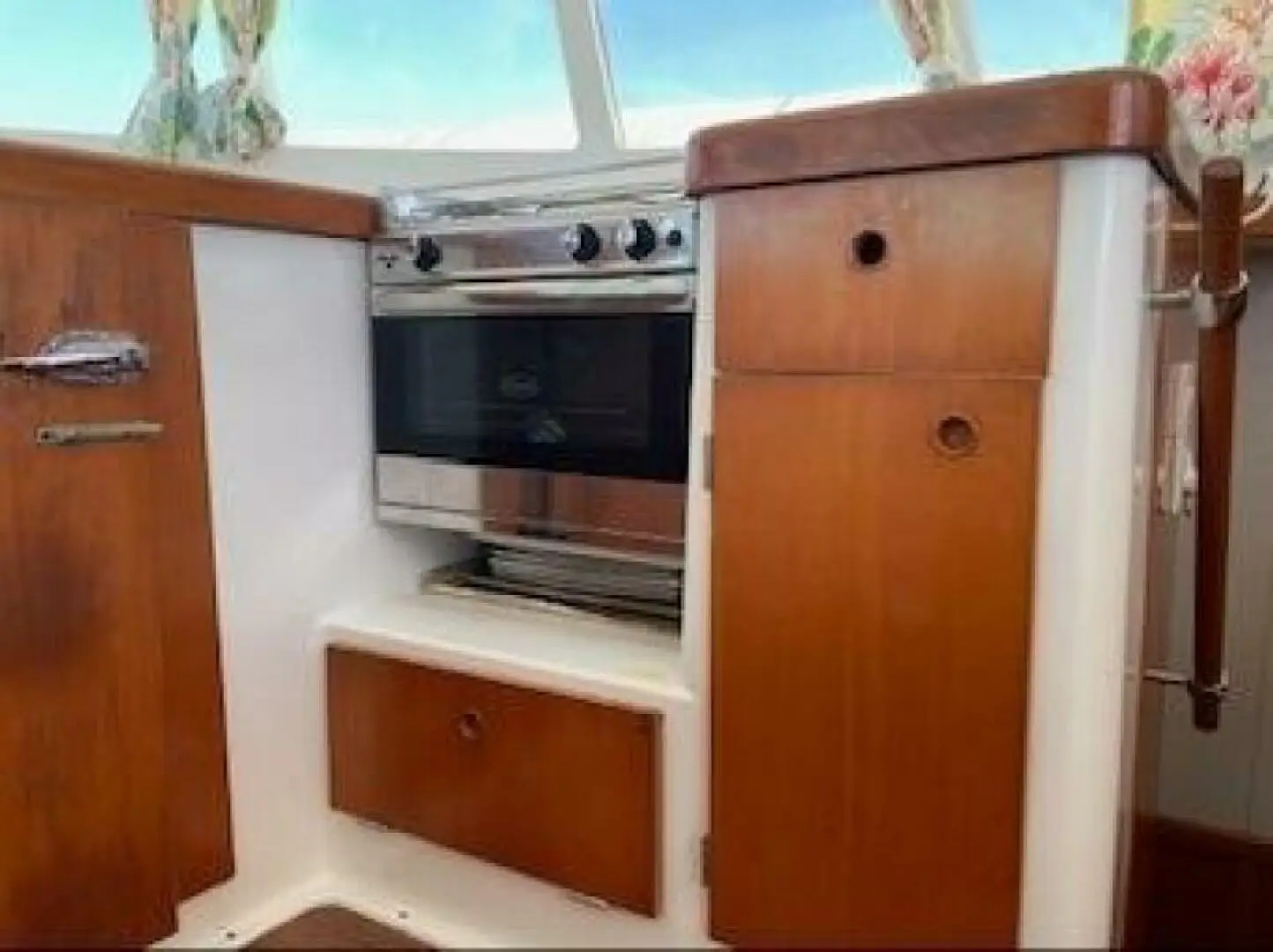

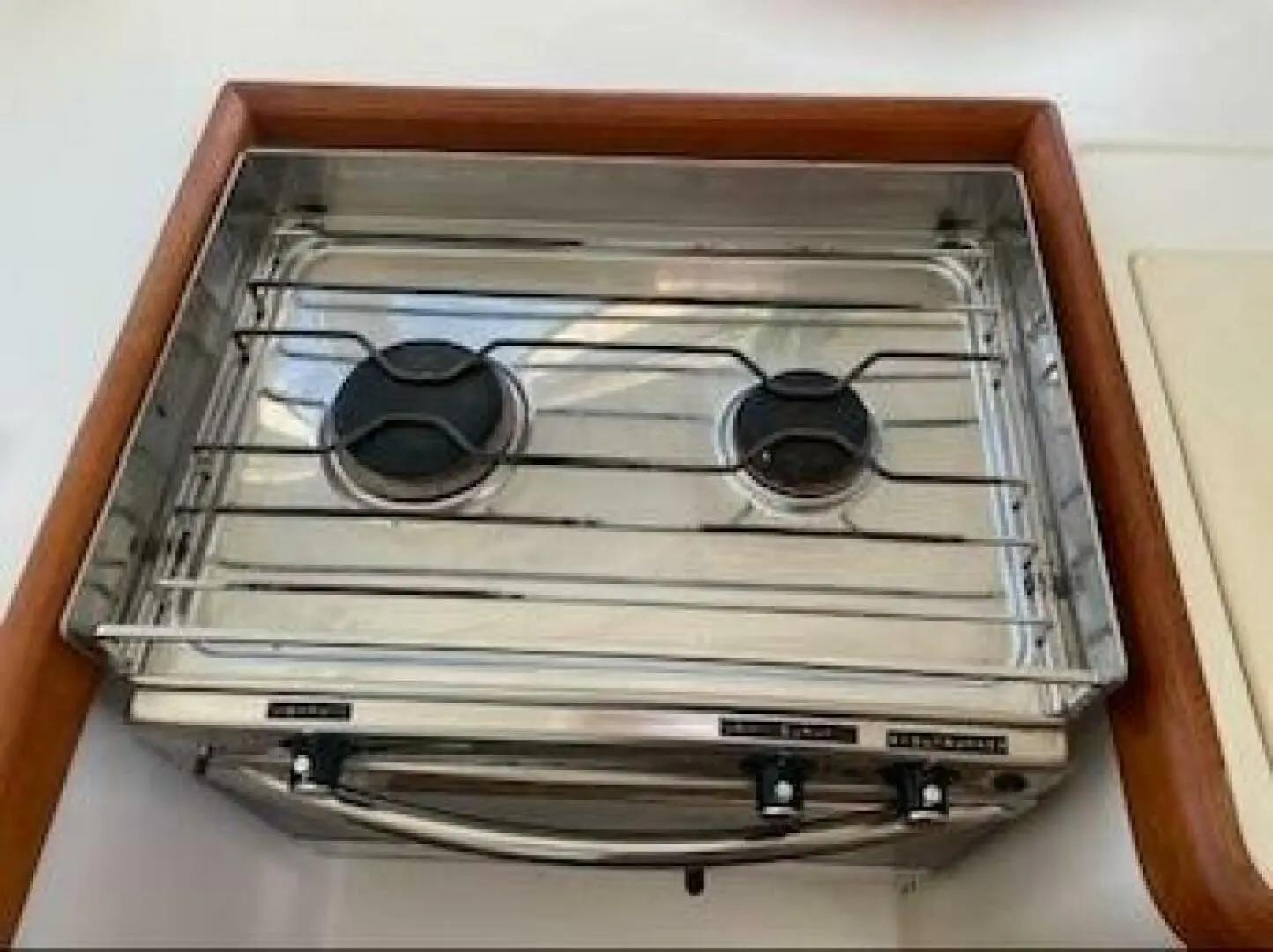

• 2 burner Eno stove/oven (2019)
• 12v frigoboat front loading fridge (2014)
• 12v frigoboat top loading freezer (2014)

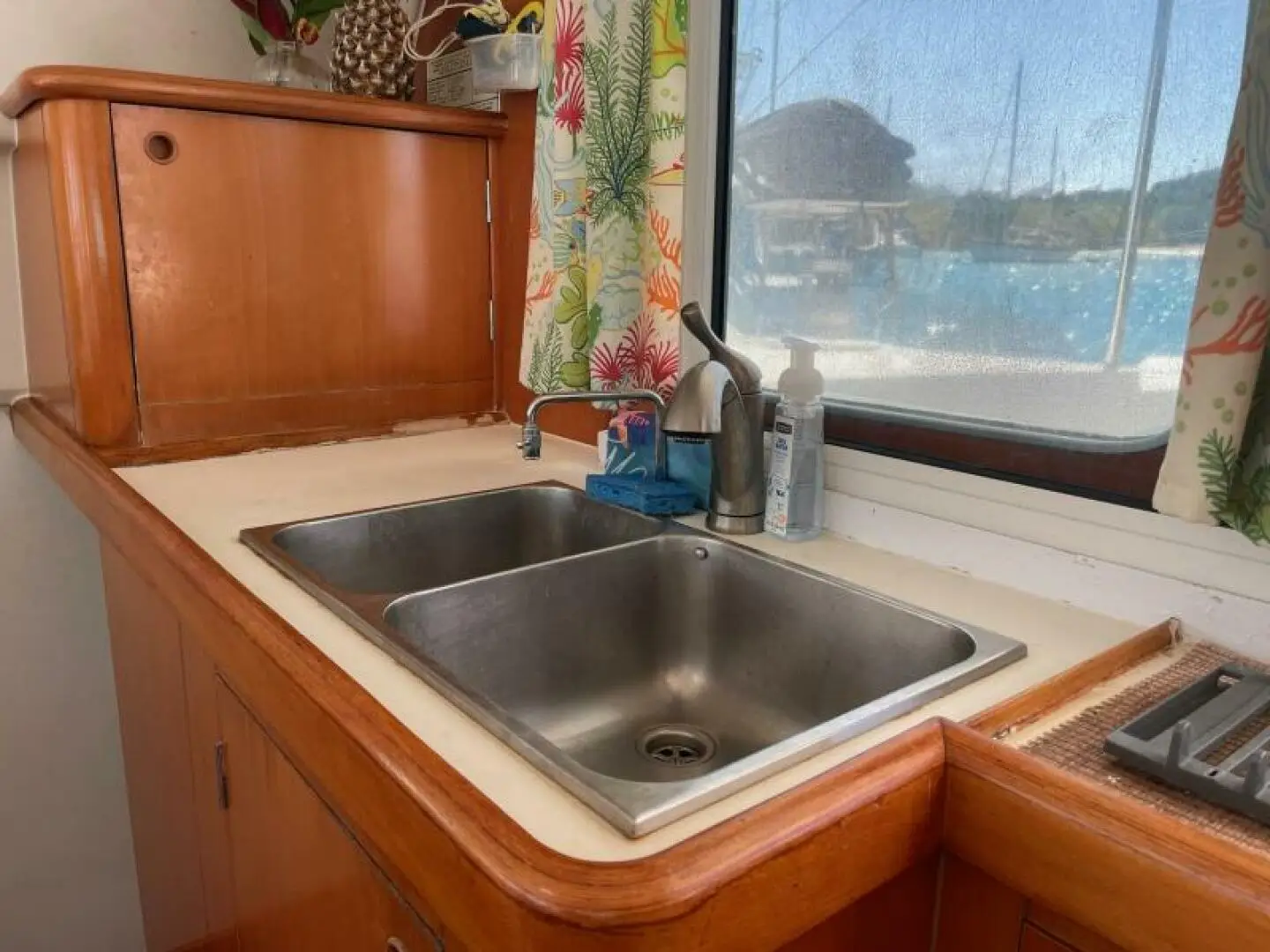

• Double stainless steel sink
• kitchen faucet (2021)
• Formica countertops
• Salt water manual foot pump at sink
• Propane vented locker with Shut-off valve
• Propane Tanks: 2 – 10 lb, 1 – 20 lb (composite)
• Coffee cups, plates, silverware, misc. pot and pans

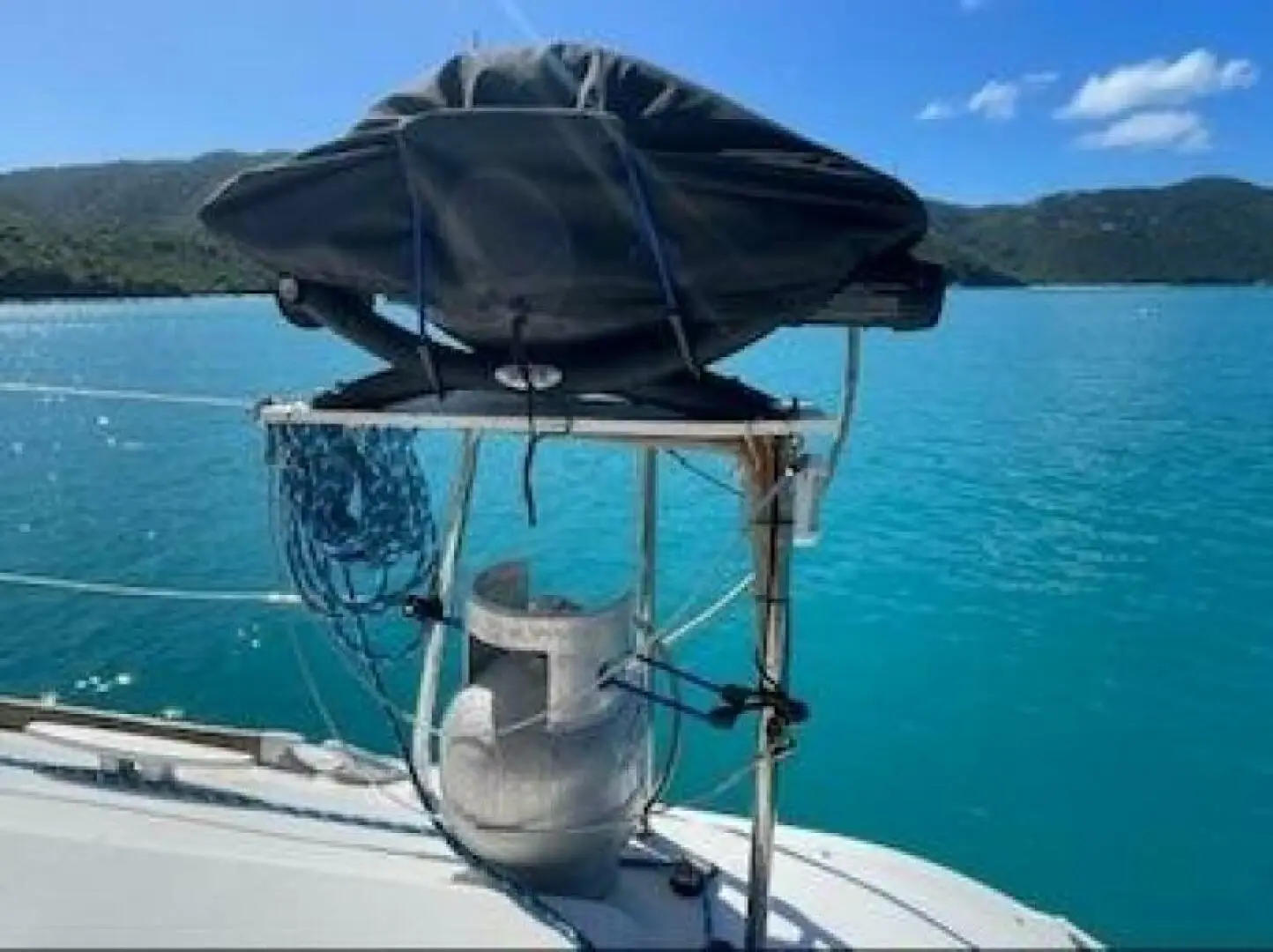

• Weber BBQ grill (2020)

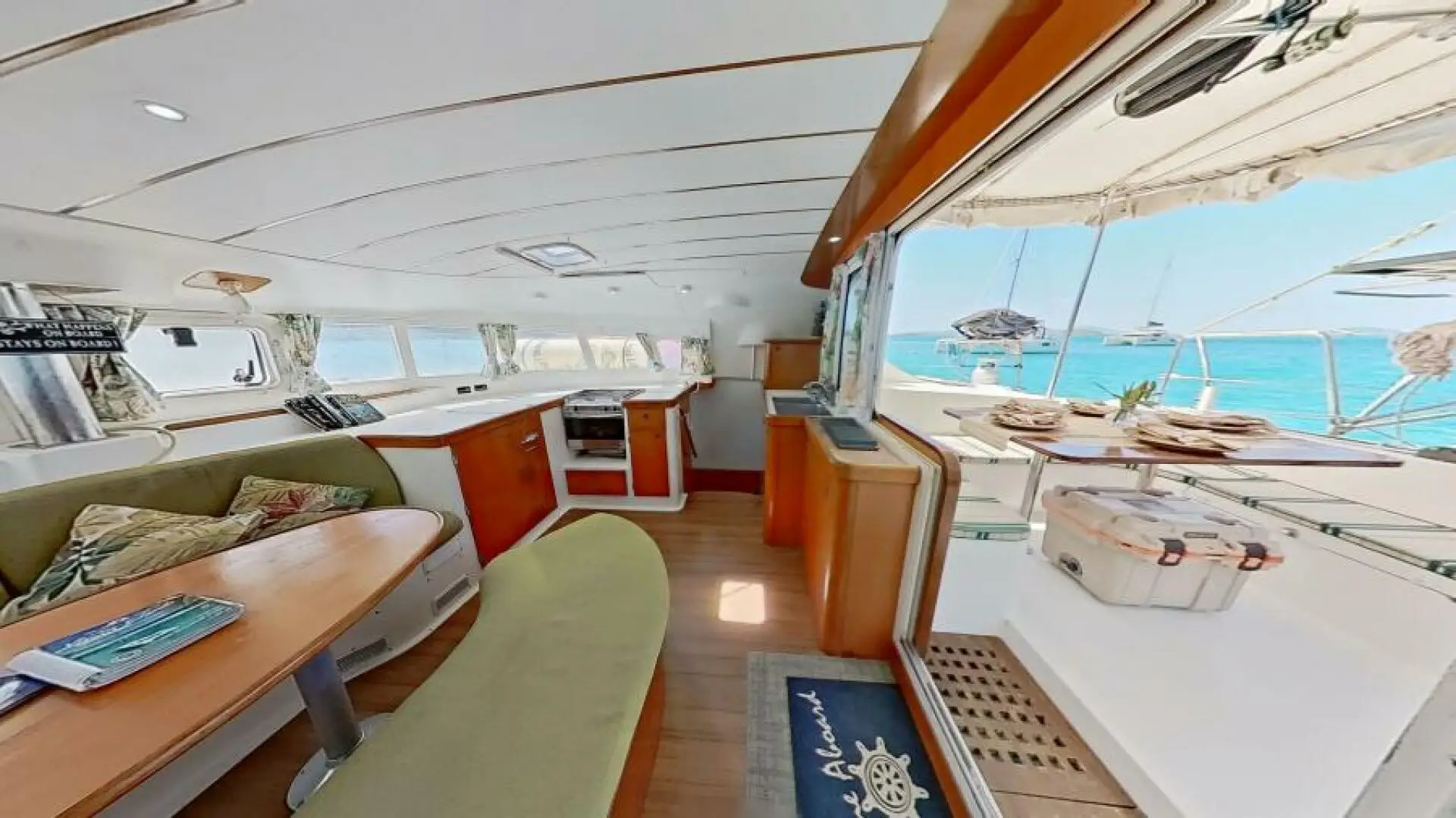

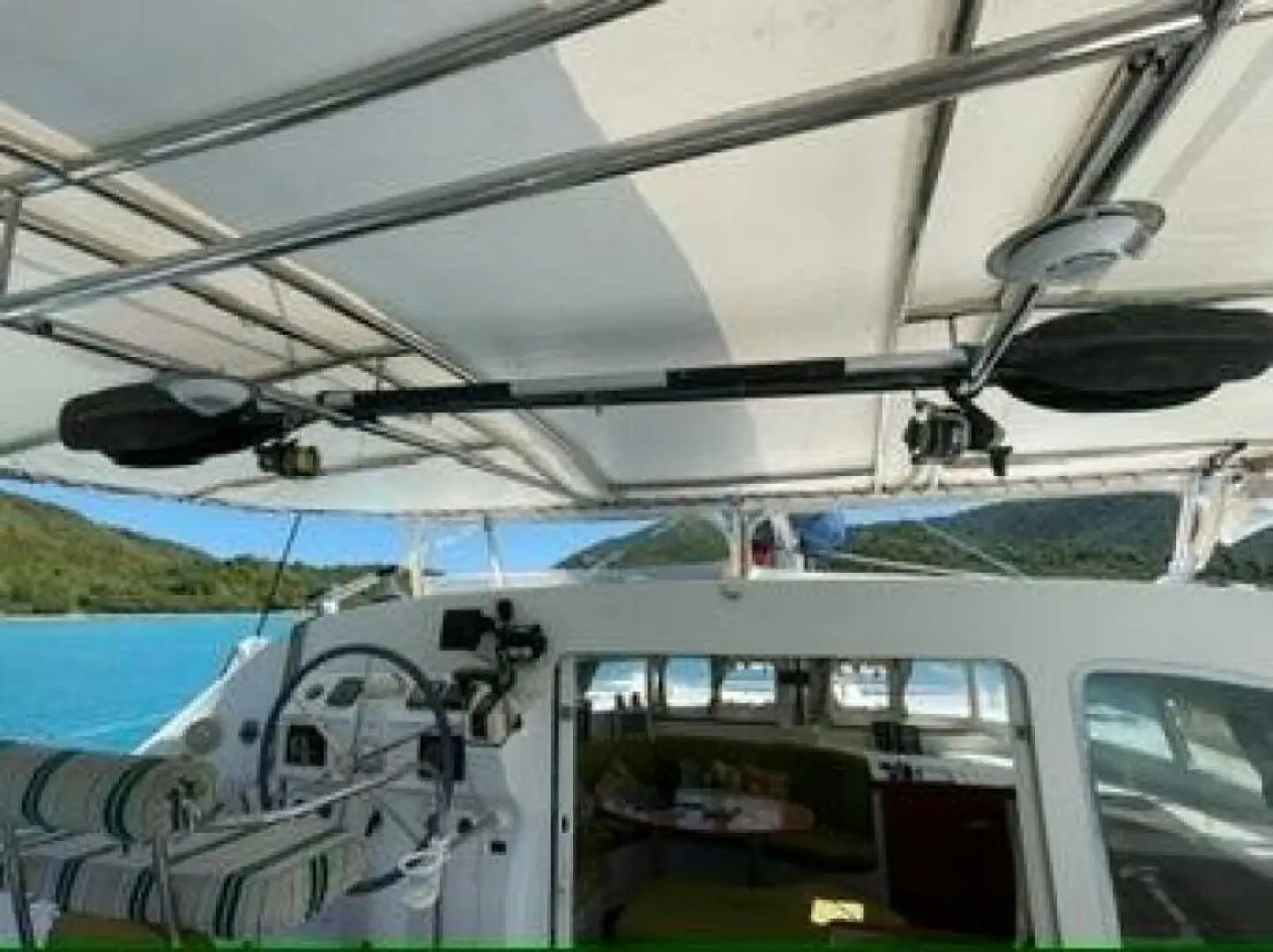

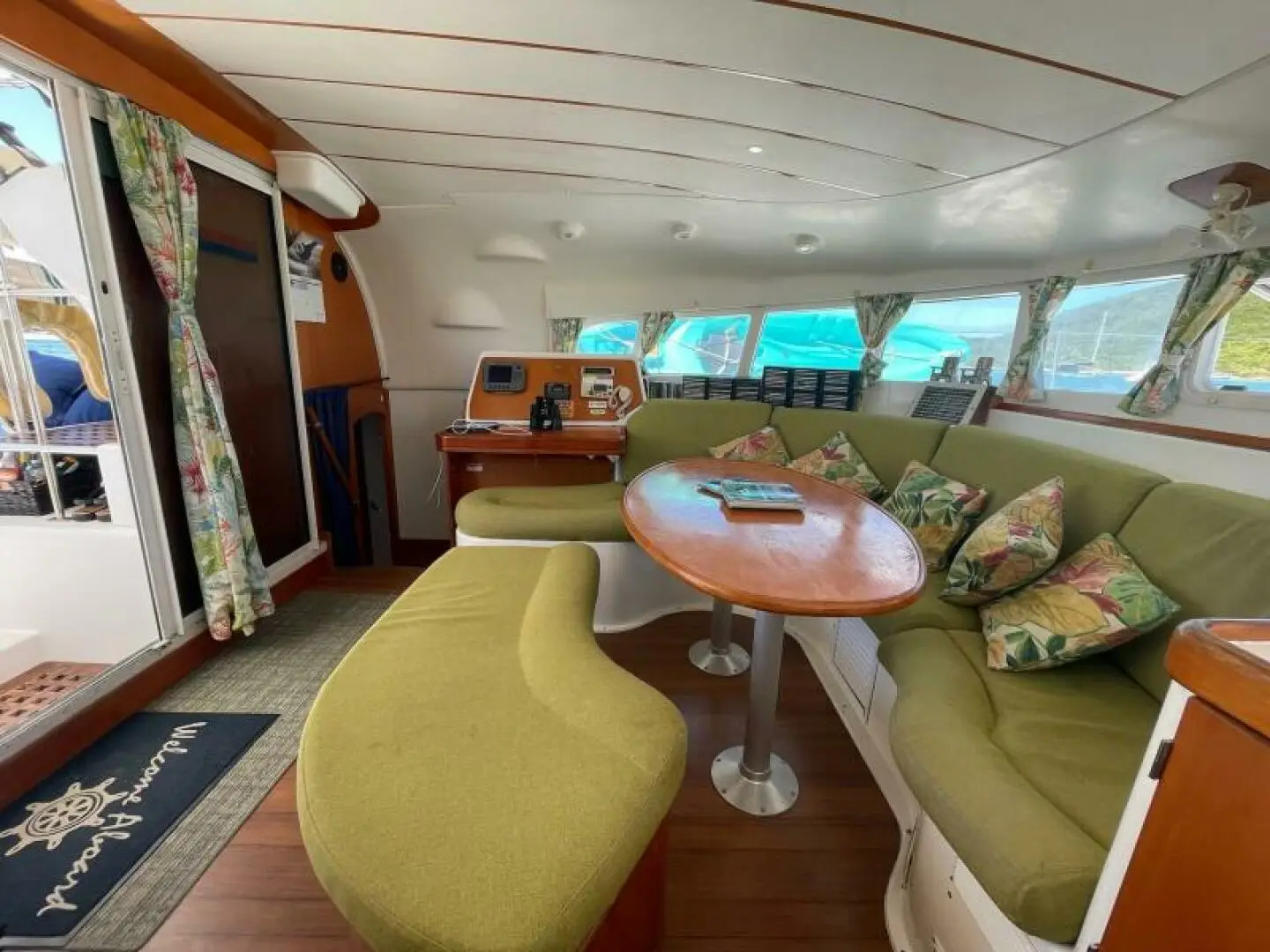

Cockpit & Salon

• Immense cockpit/open-air salon; direct access from dock or water via port transom
• Self-bailing cockpit with cockpit grating

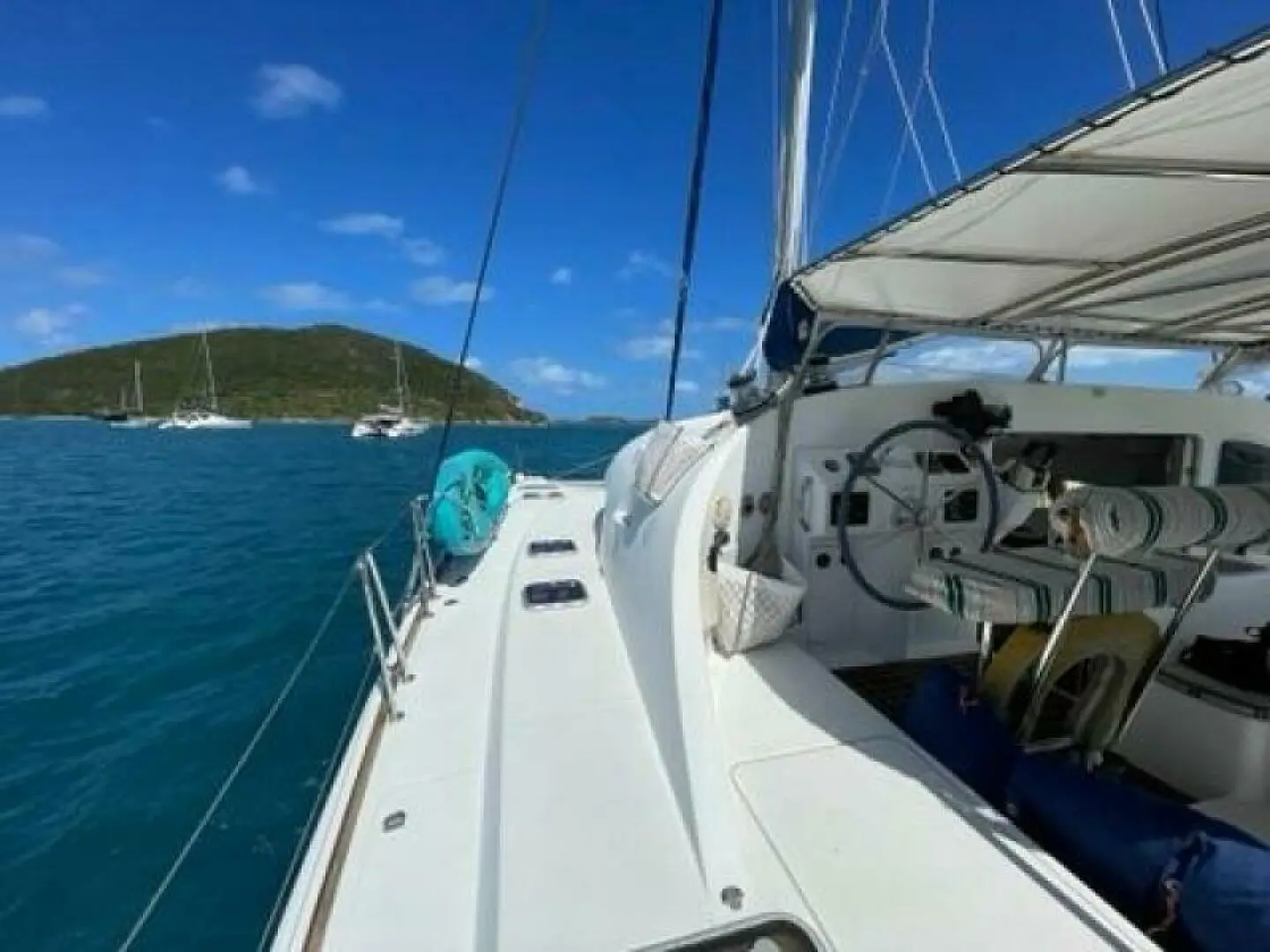

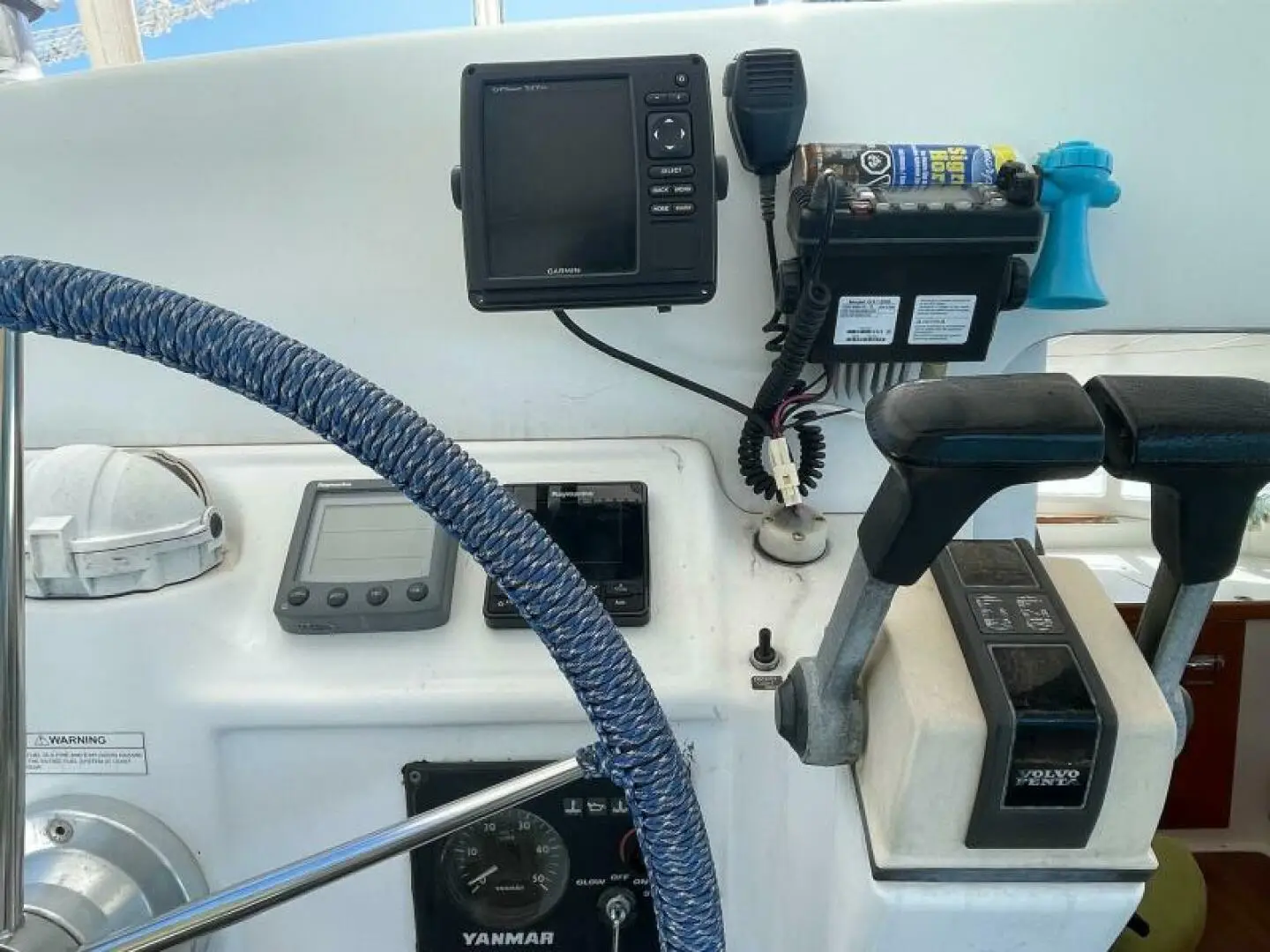

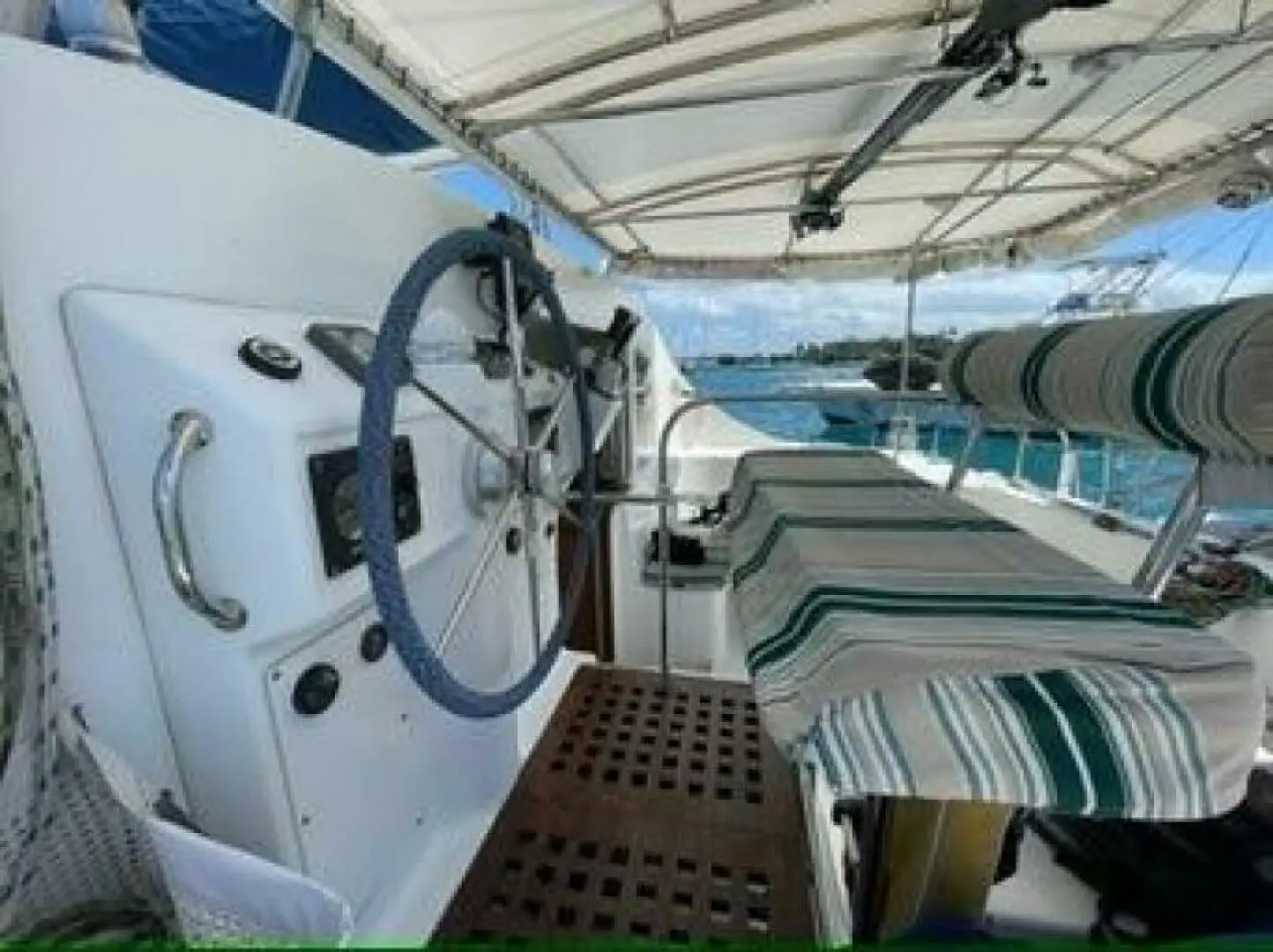

• Helm station (2-person seat) at forward bulkhead with engine controls, engine panel, and compass, dash board for electronics
• Dodger – Isinglass (2020)
• Bimini top (2020)
• Shades – Isinglass (2020) and mesh sun shades (2015)

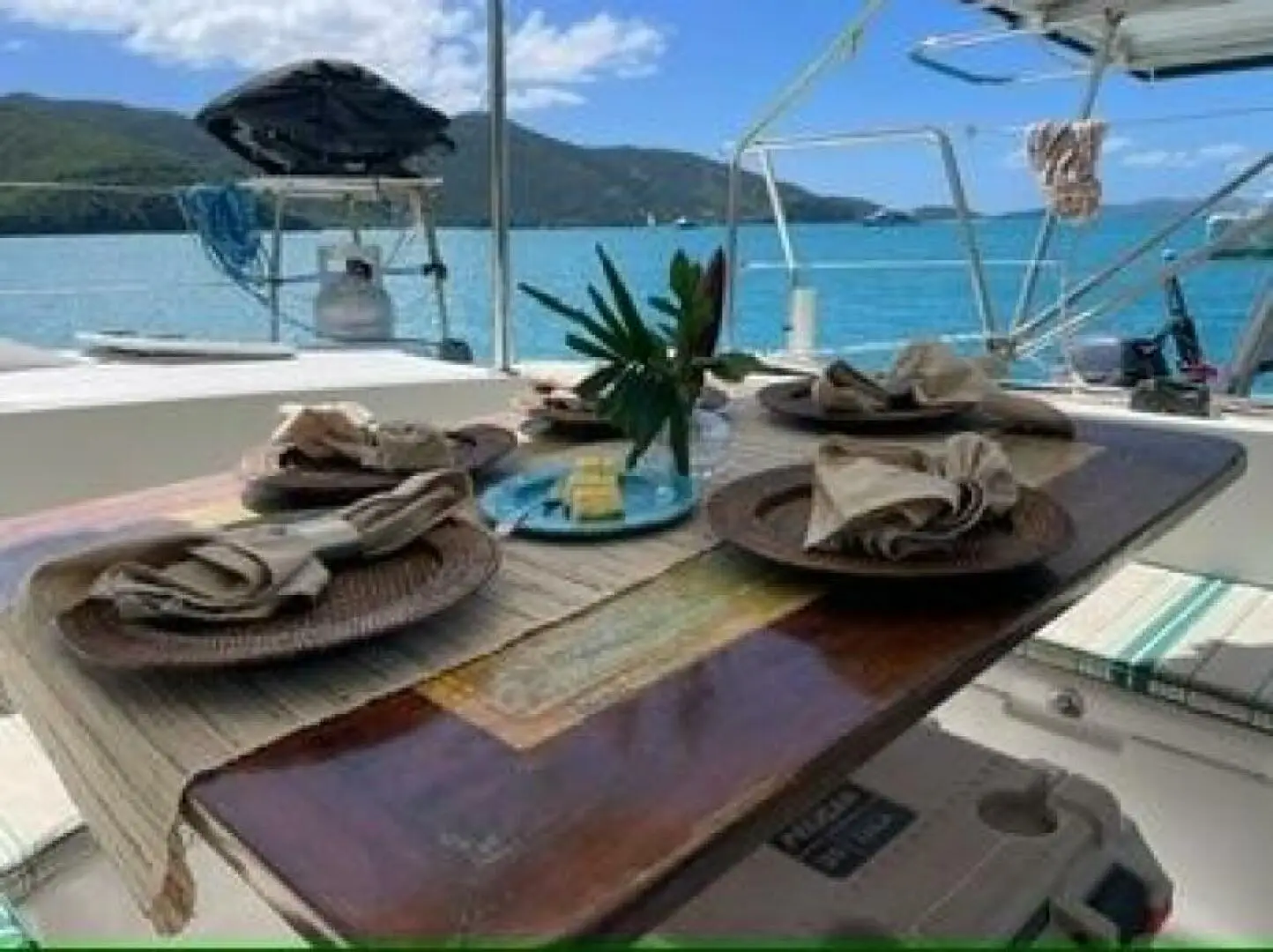

• Large varnished wood cockpit table with cover
• Cockpit cushions (10/2016)
• Cockpit floor anti slip redone in 2020
• 2 storage lockers under cockpit seats
• Transom Shower with hot & cold water
• Swim Ladder with wide steps

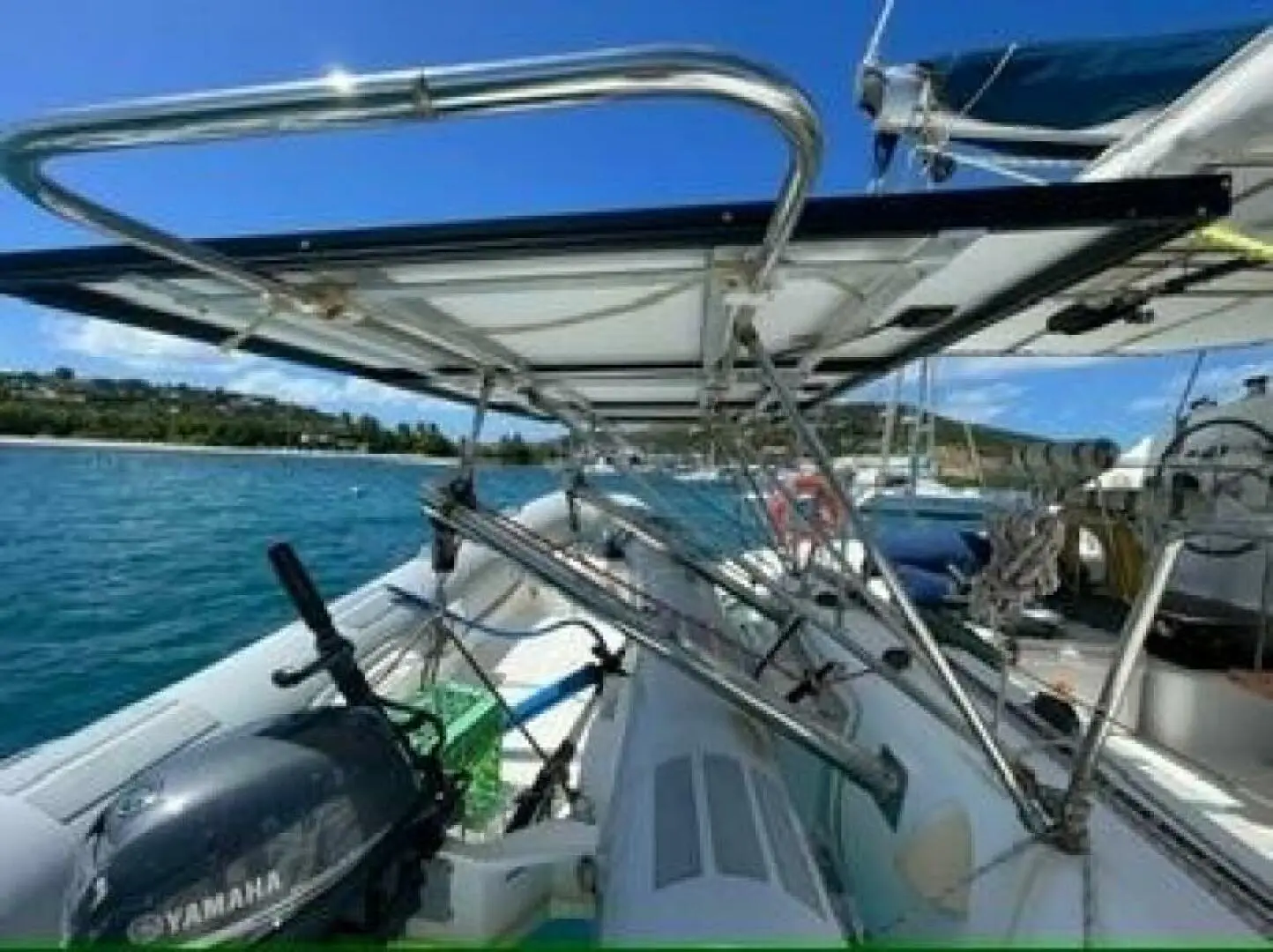

• Dinghy Davits
• Milwaukee 28v Right angle drill with winch bit (for lifting dinghy), extra batteries

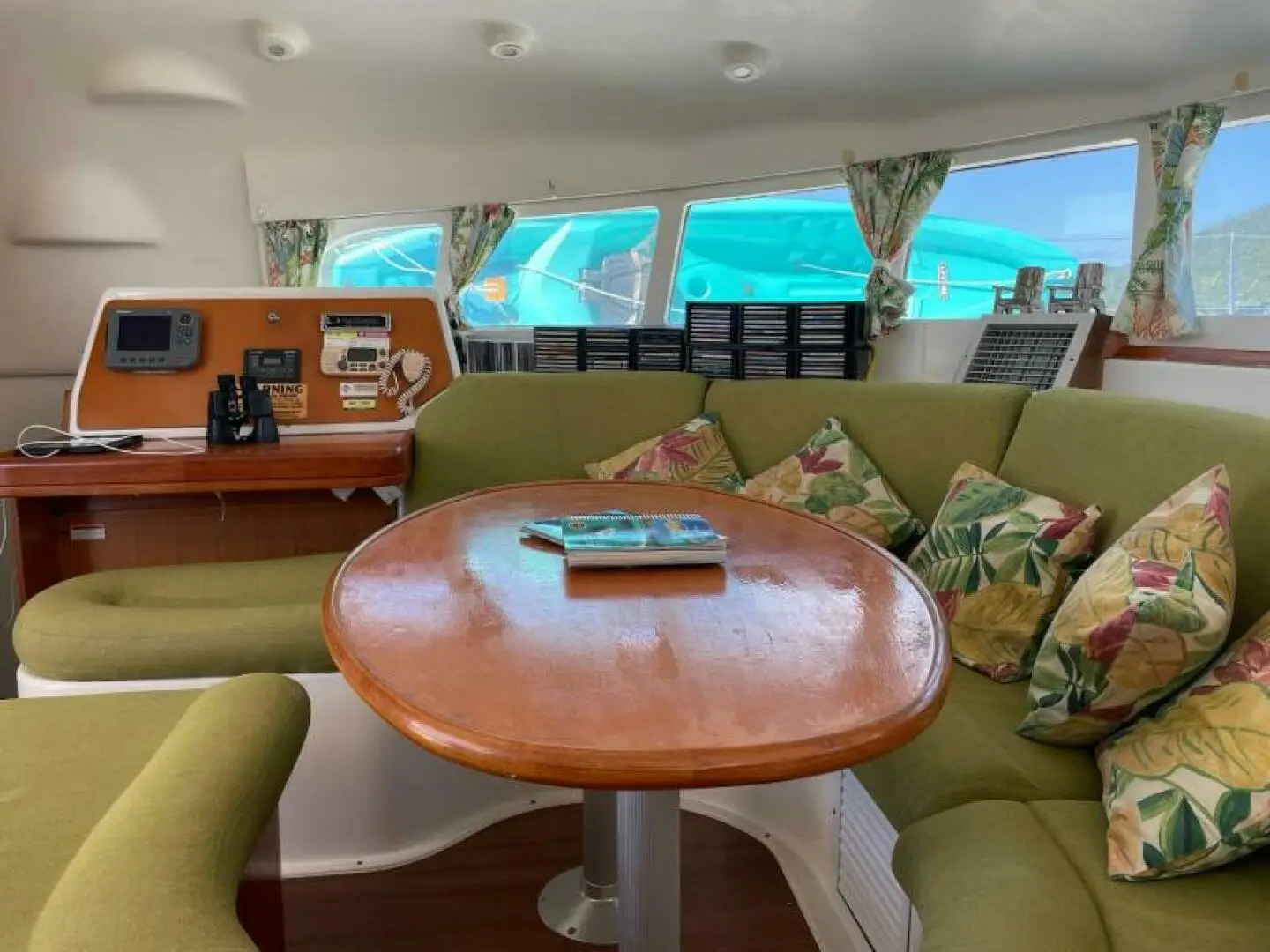

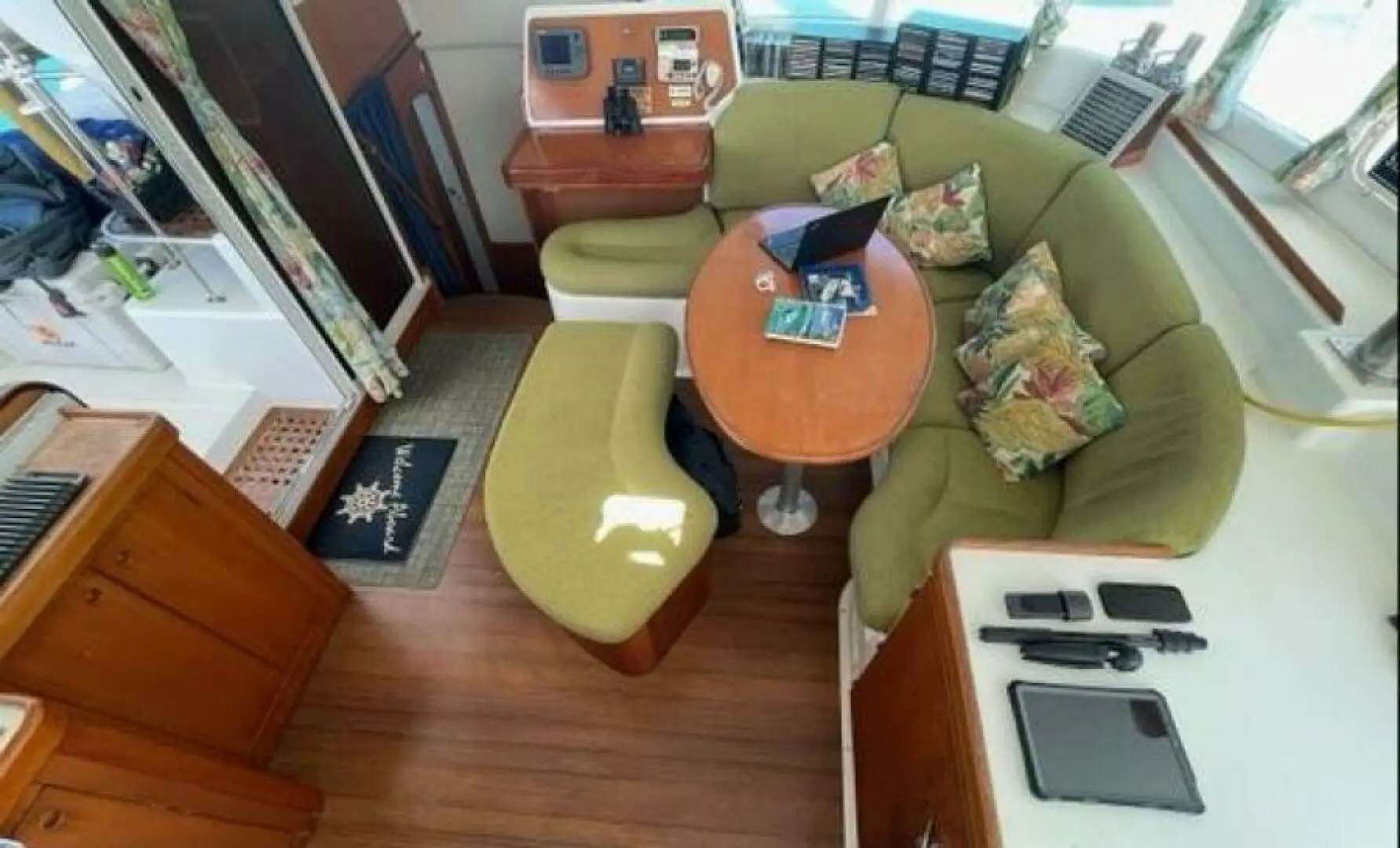

• New salon floors and steps (2020)
• Salon cushions (10/2016)
• Kenwood Stereo with (2) speakers in cockpit, (2) Pioneer speakers in salon (2015)
• Vacuum – craftsman wet/dry vac, dyson handheld

Water Systems

• Water Heater – engine run
• Pressurized fresh water system
• Manual saltwater system with foot pump
• 3 water tanks: 1- 90 gallon tank behind windlass
•   2 – 45 gallon tanks in forepeaks
• total water capacity – 180 gallons
• Rainman watermaker 37 gallon/hour portable

Safety Equipment

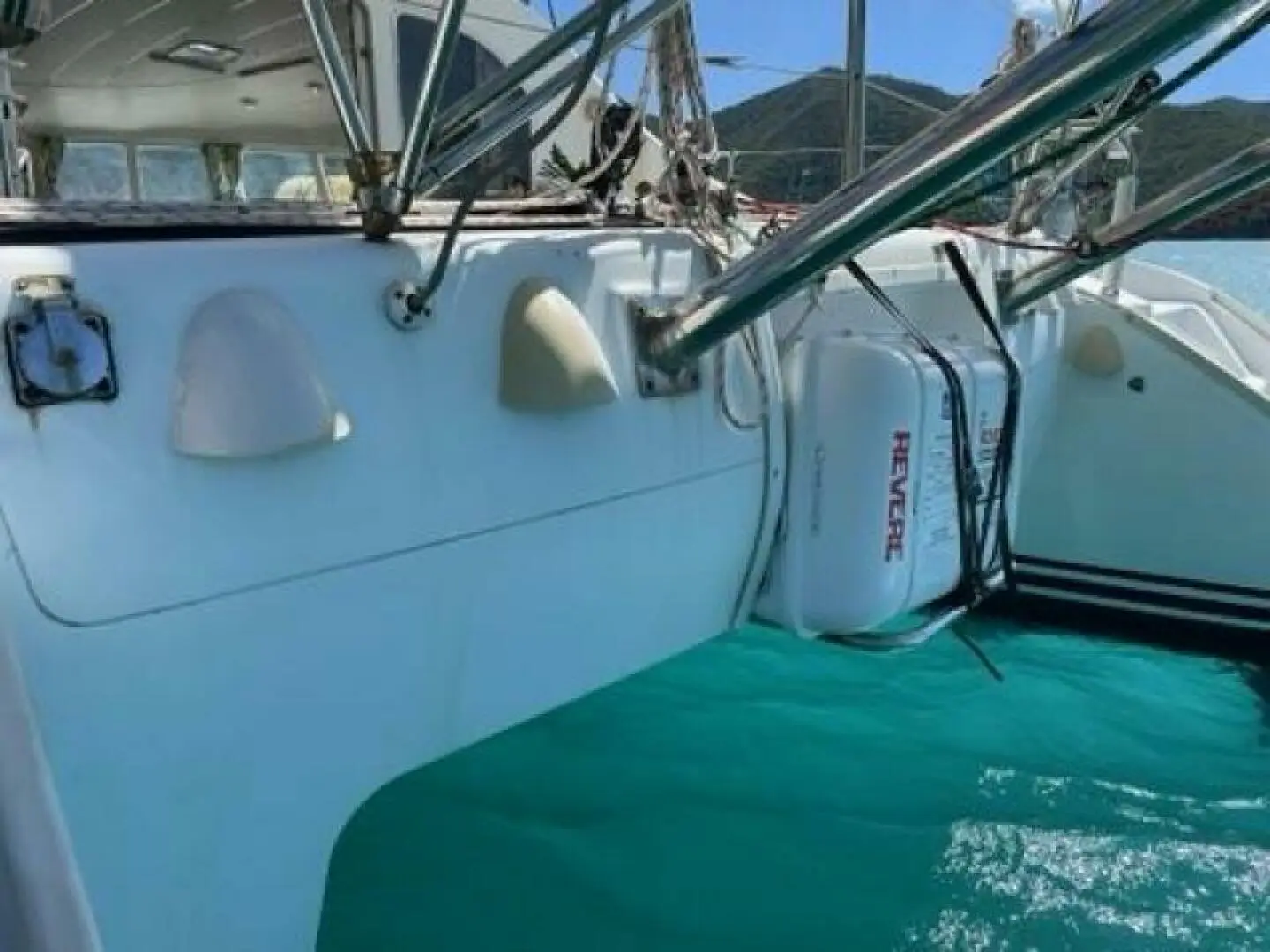

• 8 person liferaft (2019)
• Life ring
• EPIRB (2019)
• Electronic Flare (battery operated) Coast guard approved
• Lifejackets

Anchoring & Docking

• 20kg Rocna primary anchor (2018) + 200 ft of chain (2014)
• Fortress FX-23 secondary anchor + 25 ft of chain + 175 ft of rode
• Fenders and dock lines

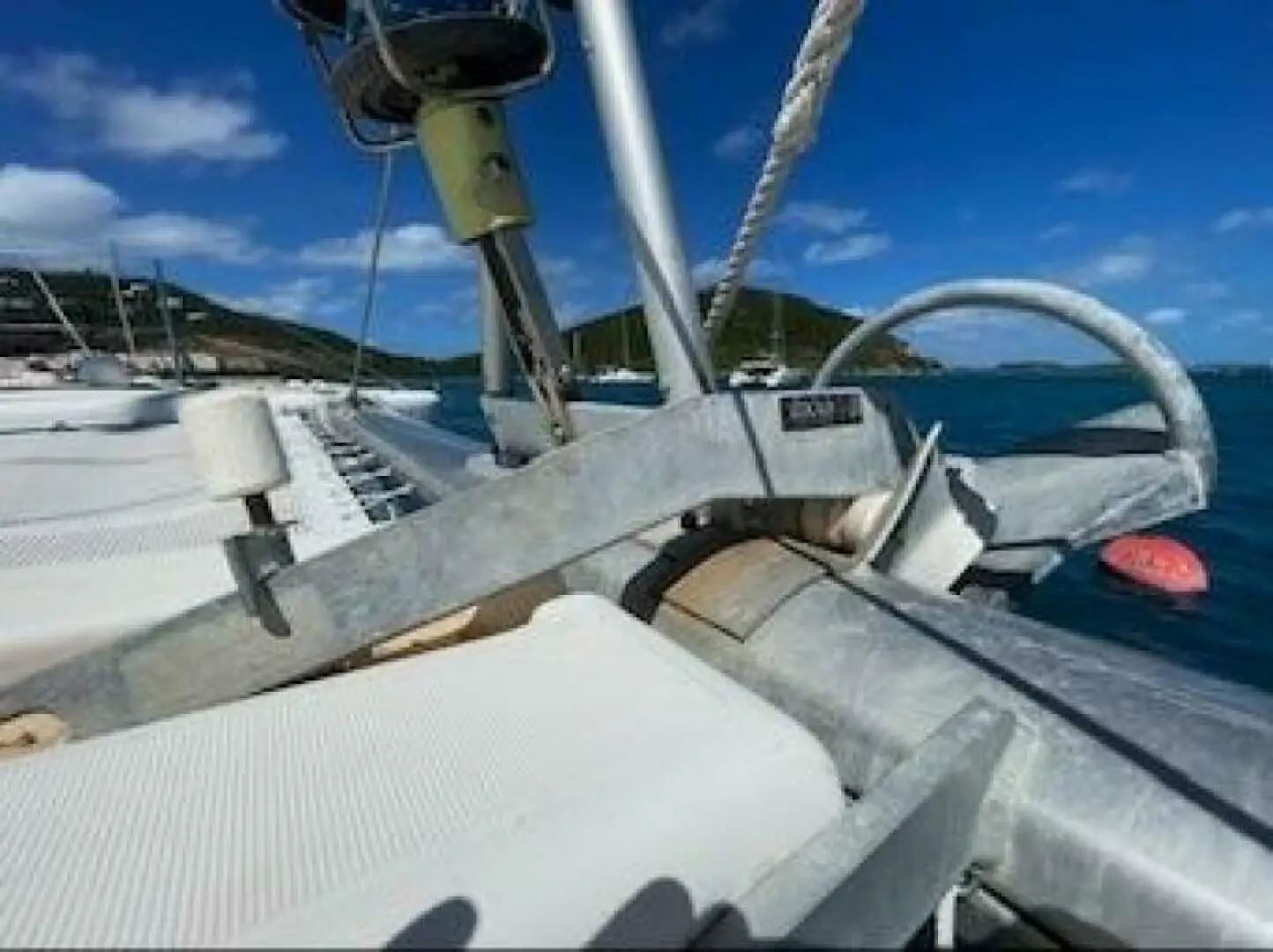

• Lowfrans Tigres anchor windlass (new motor 2012)
• Bow anchor roller (2020)
• 4 – Fenders

Tender & Water Sports

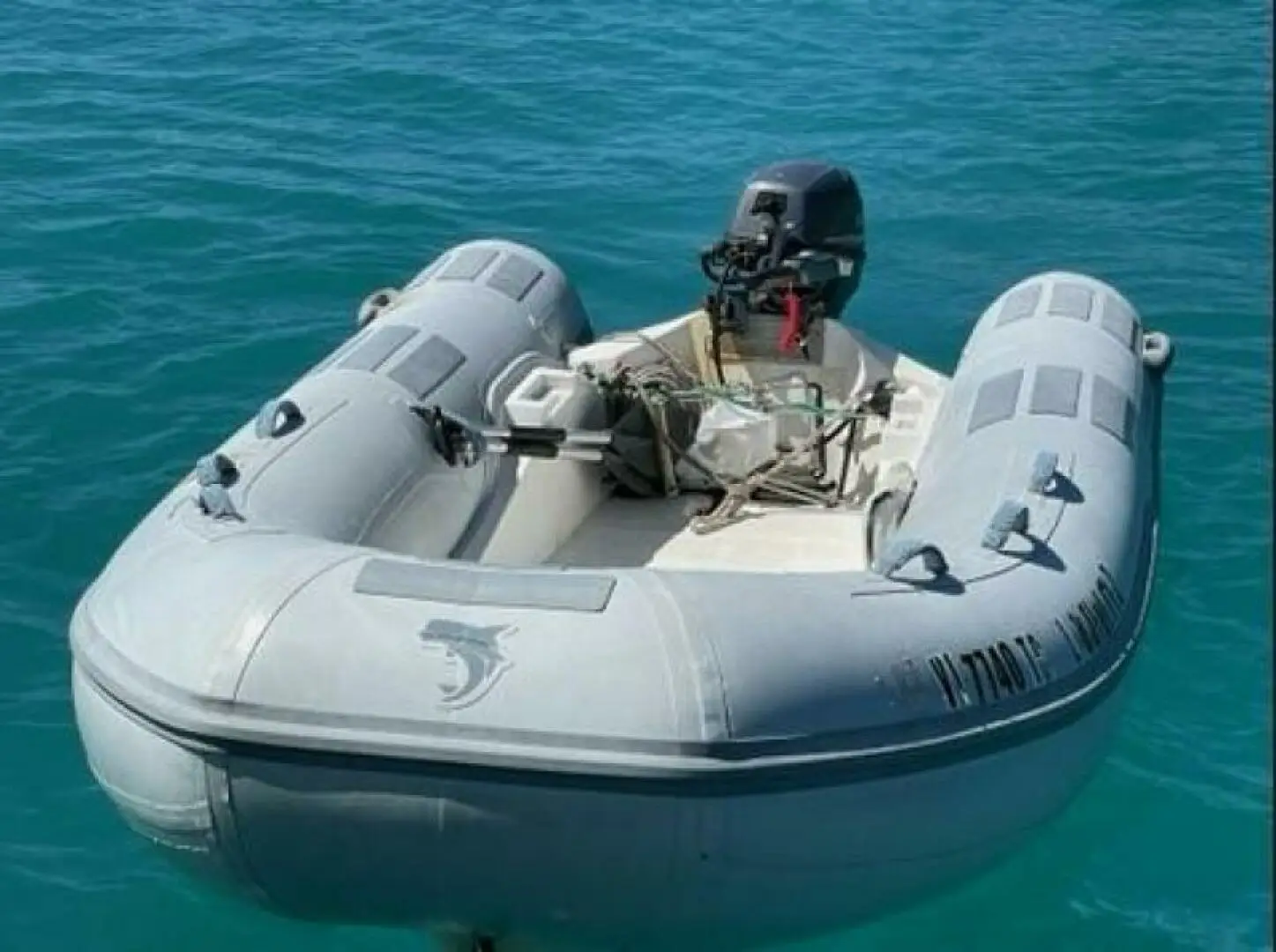

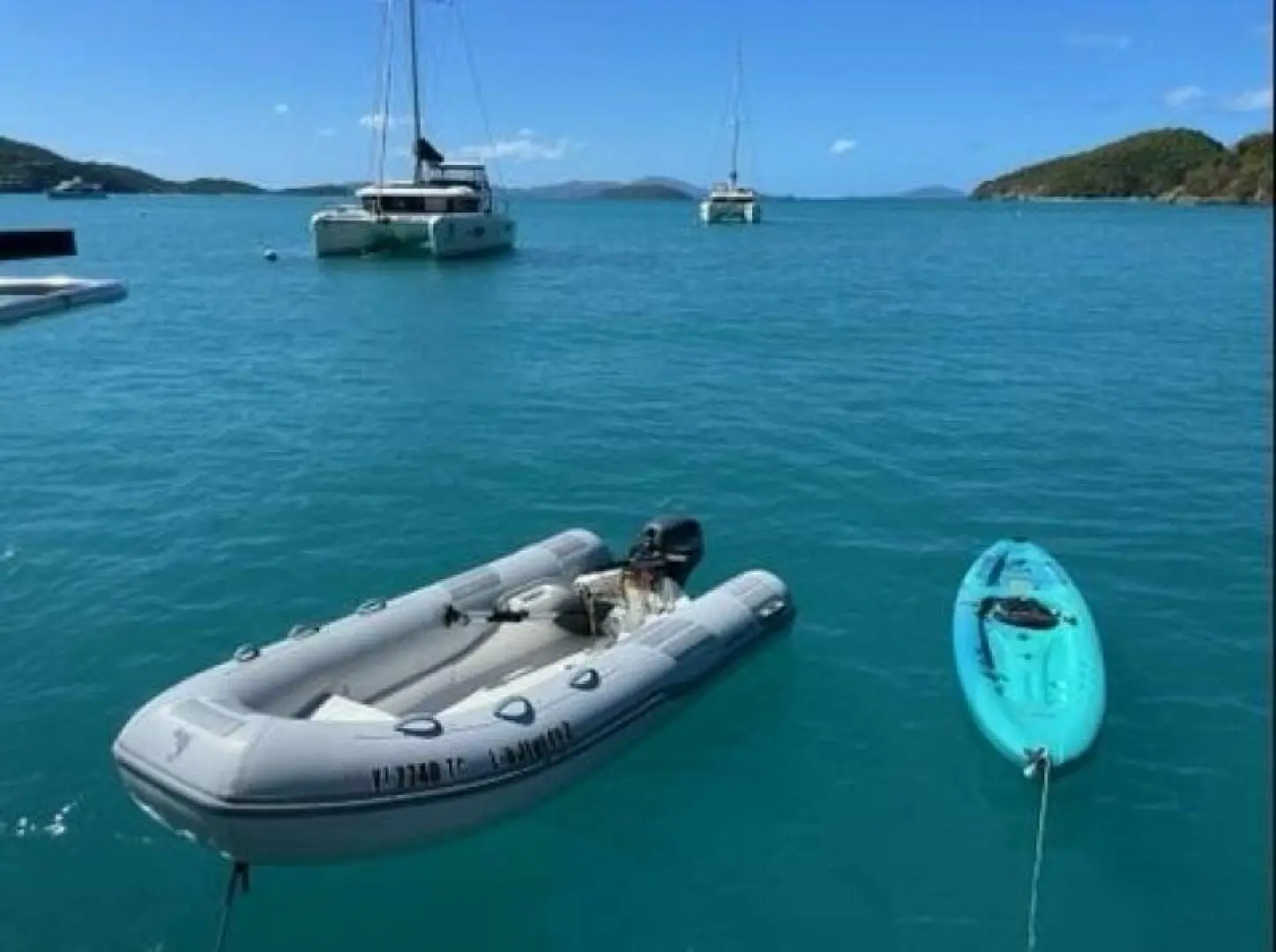

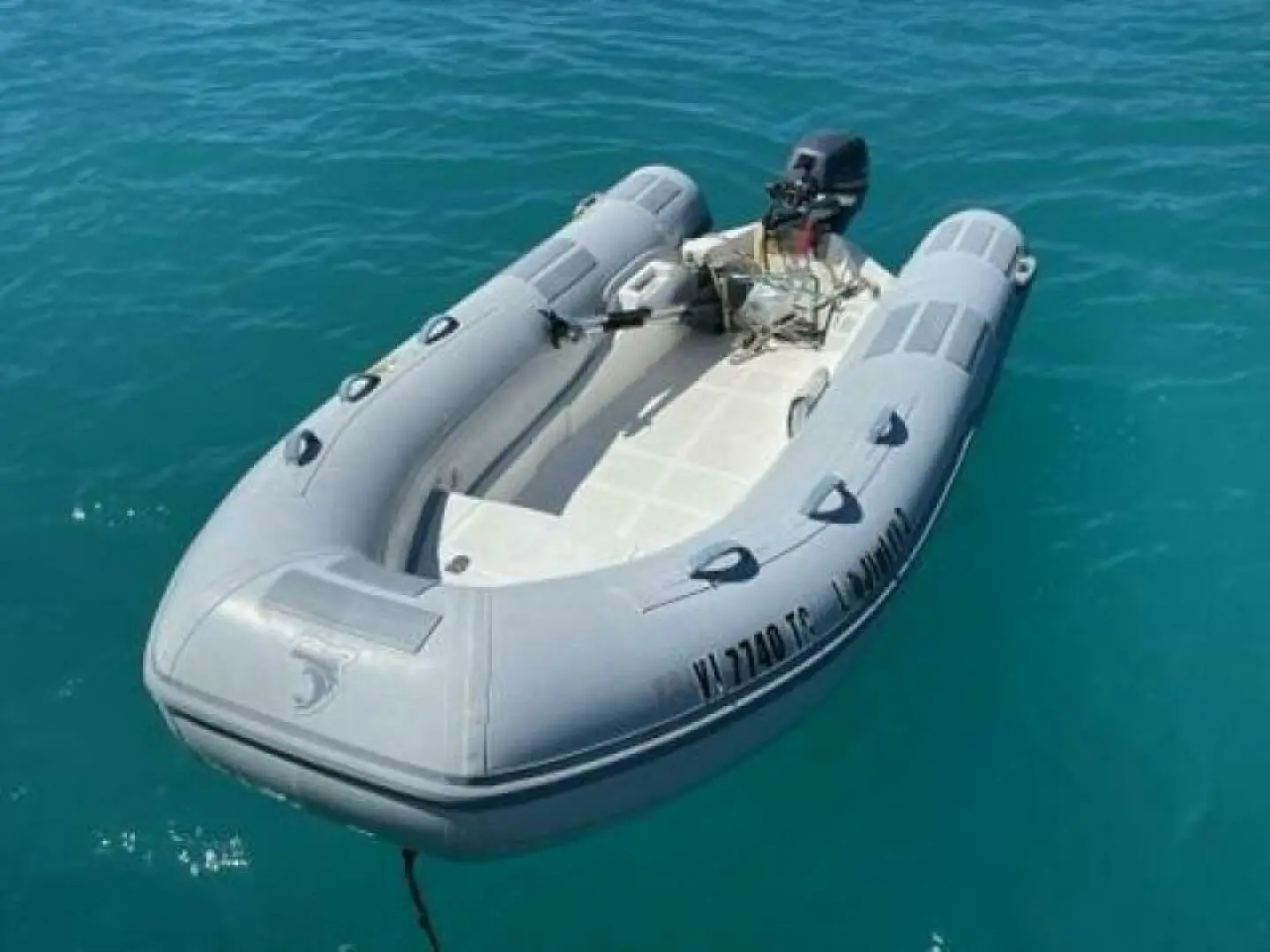

• Caribe C12X (2021)

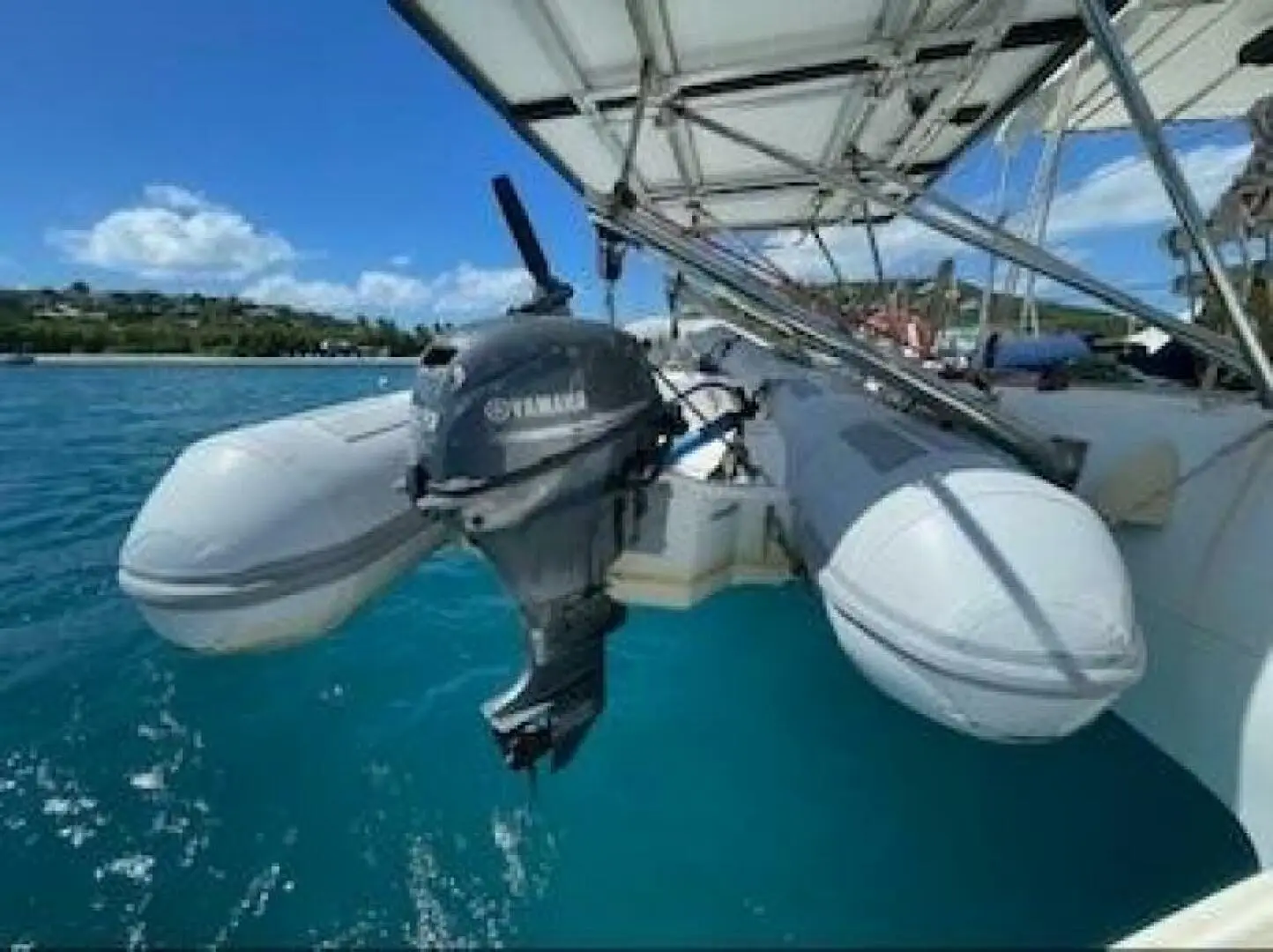

• Yamaha 9.9HP 4-stroke (2021)
• Dinghy anchor with 20 ft of rode (2021)
• Up n Out 3 step ladder

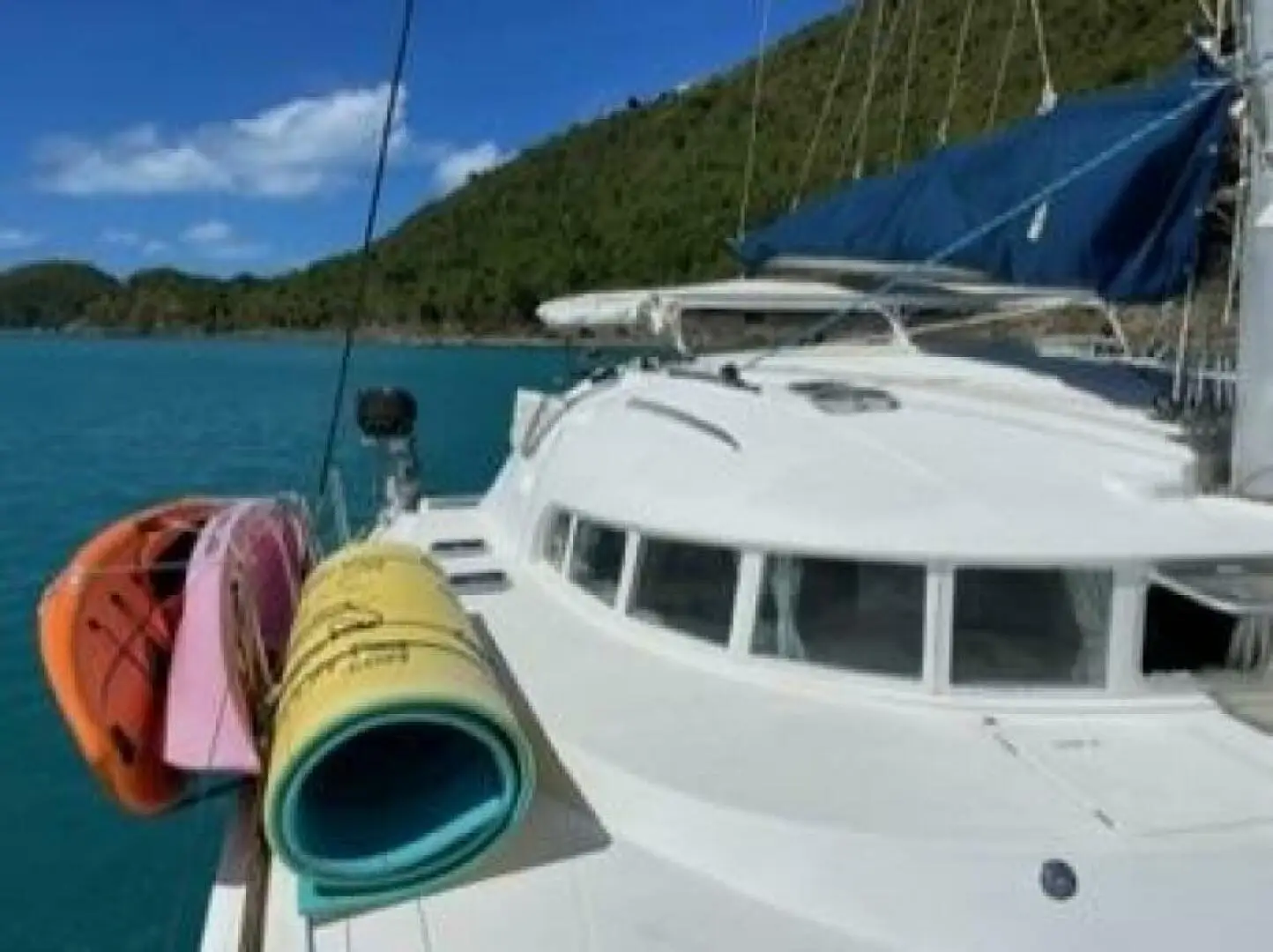

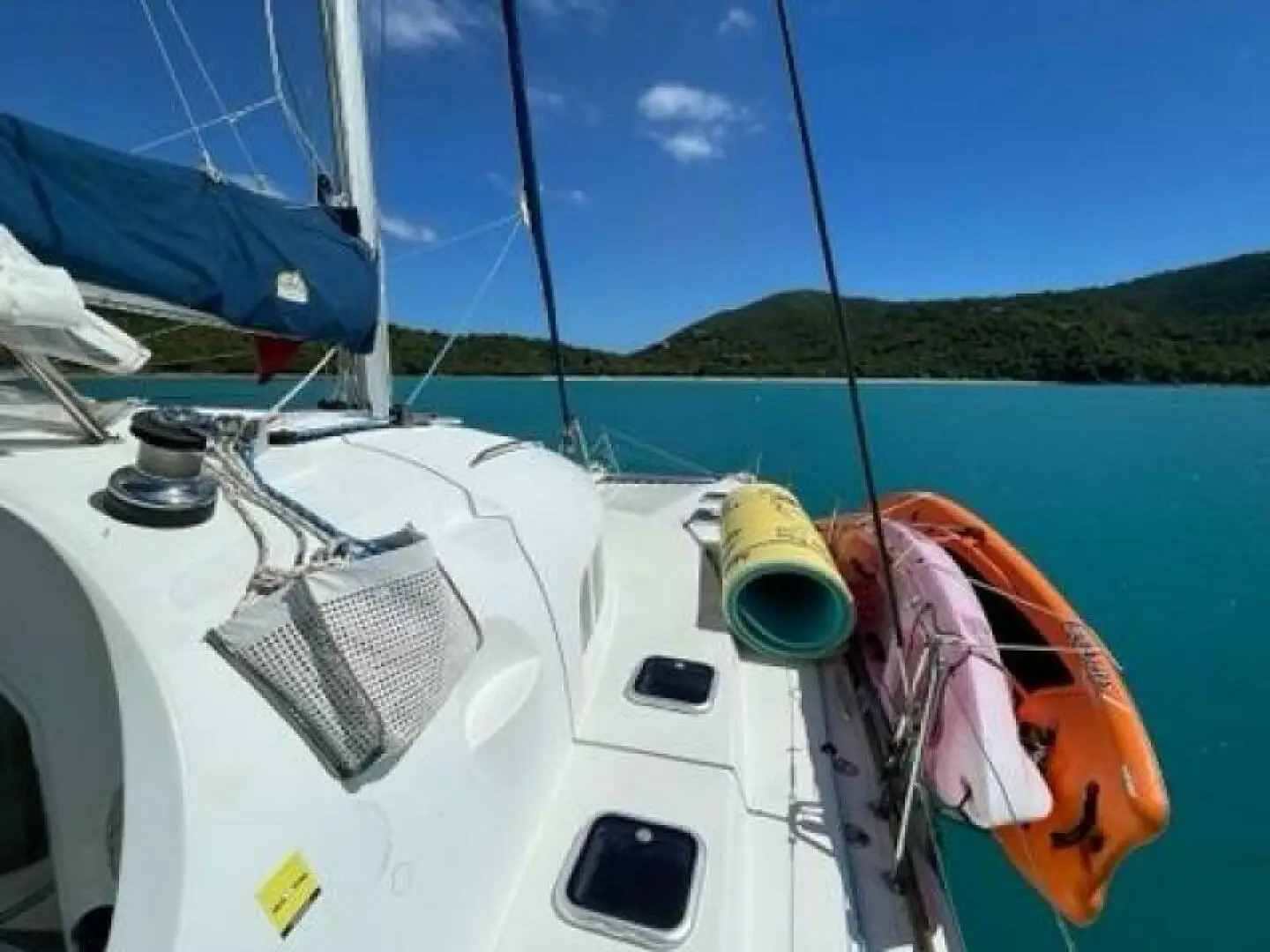

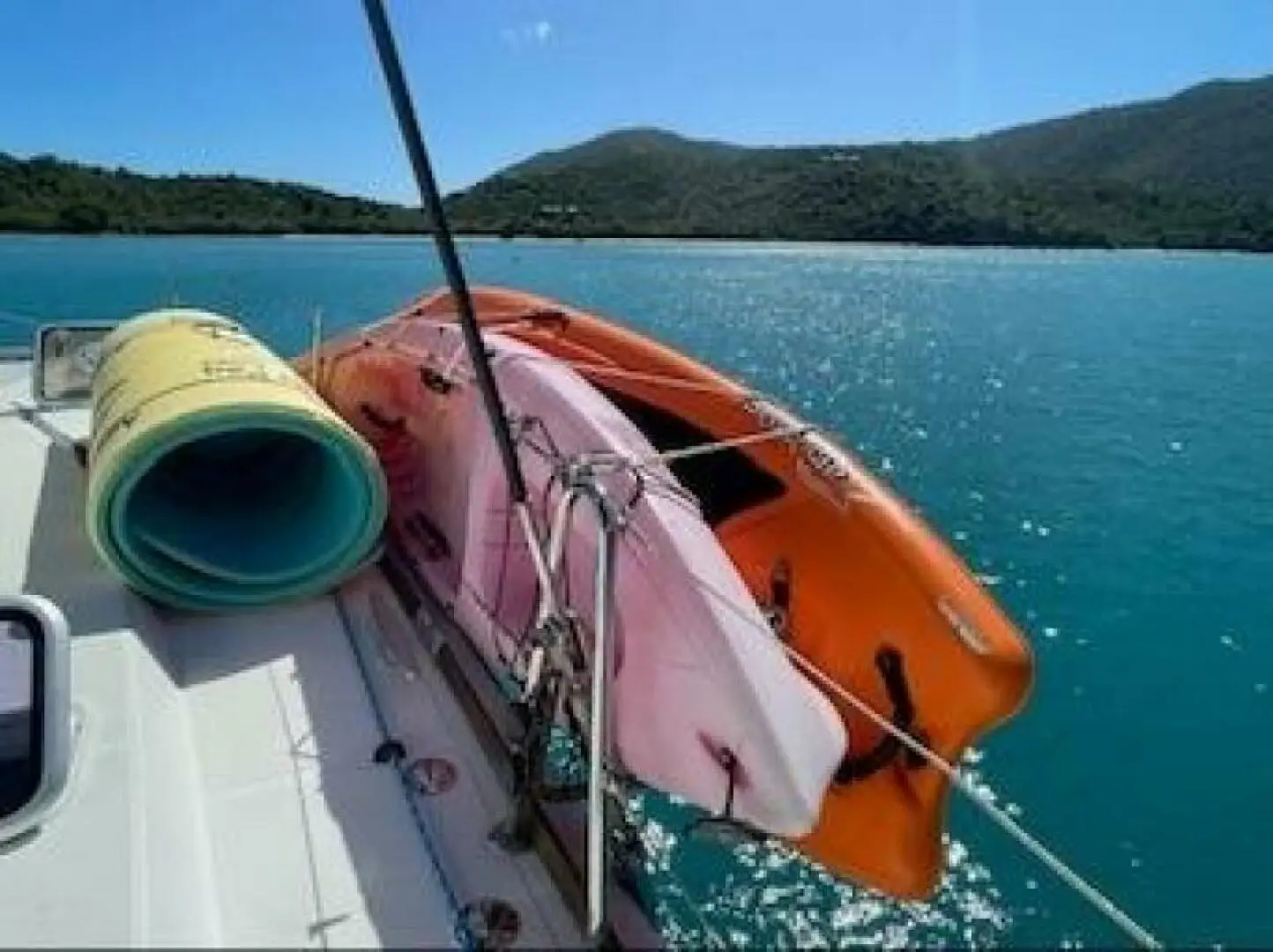

• 2 – Kayaks (single)
• Swim Noodles
• Snorkel Gear (several sets)
• 1 – 5 gal diesel can
• 1 – 5 ltr water jug
• 1 – 12v igloo cooler
• 2 pelican coolers: 1 Lg (doubles as a seat at the table) + 1 – 30 qt
• 1 lily pad (floating mat)
• 1 SUP (stand up paddleboard)

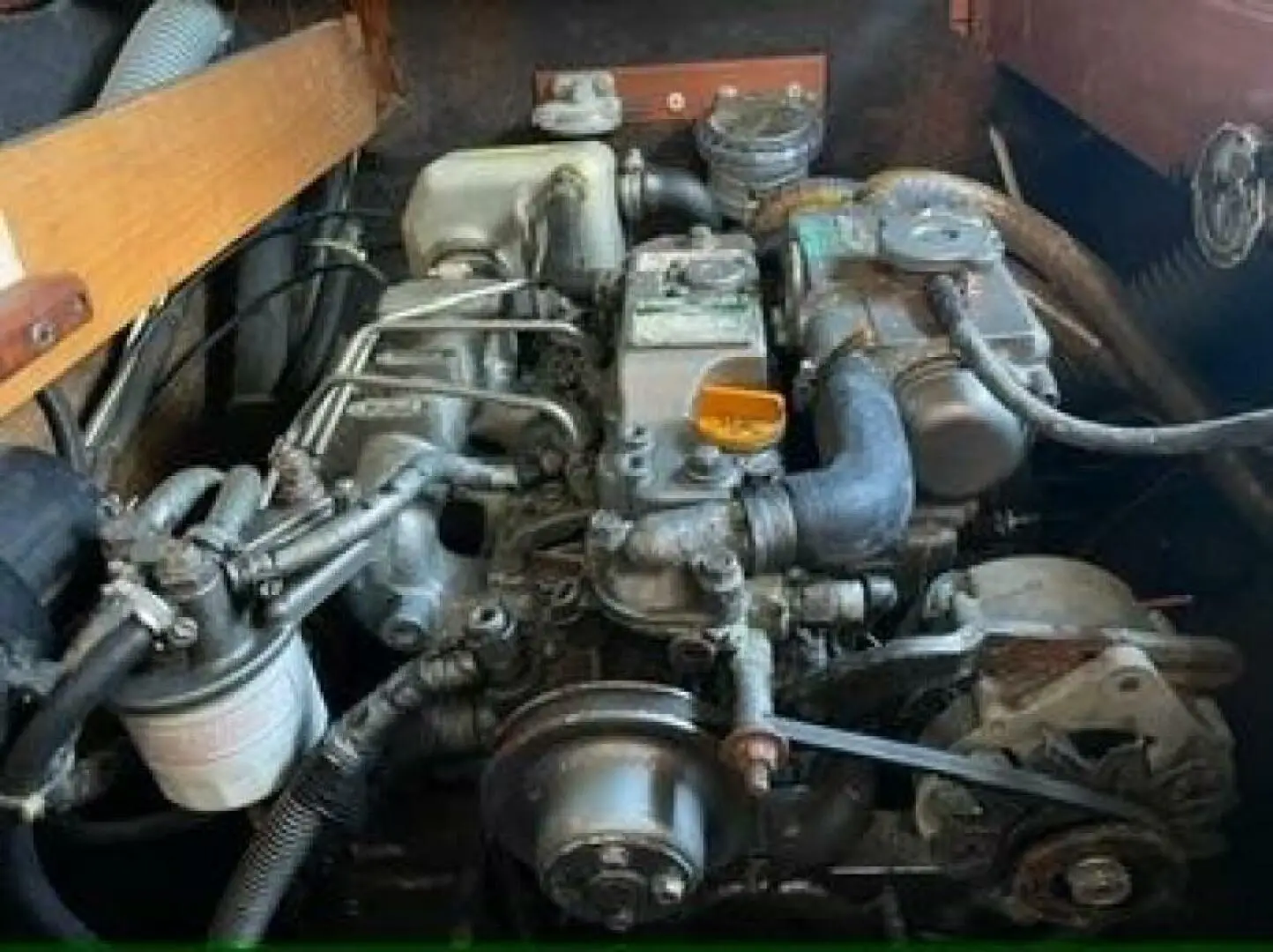

  Engine 1

  • Engine Make: Yanmar
  • Engine Model: 3JH4E
  • Engine Year: 2006
  • Engine Type: Inboard
  • Drive Type: Sail
  • Power HP: 39.40
  • Power KW: 29.38
  • Fuel Type: Diesel
  • Hours: 5200.00
  • Engine Location: Port

  Engine 2

  • Engine Make: Yanmar
  • Engine Model: 3JH4E
  • Engine Year: 2006
  • Engine Type: Inboard
  • Drive Type: Sail
  • Power HP: 39.40
  • Power KW: 29.38
  • Fuel Type: Diesel
  • Hours: 5200.00
  • Engine Location: Starboard

Auction Terms:

Winning Bid – The winner of the auction will be required to submit a fully refundable deposit of 10% of the value of the item within 12 Hours, an IYBA sales contract will then be written specifying the selling price, the acceptance date and the closing date for the sale of the vessel, adequate time for a survey and sea-trial will be included in the contract terms to ensure due diligence is carried out on the sale of the vessel.

A sample of an IYBA sales contract can be downloaded HERE section on the customer account page.

Full Auction Instructions  HERE
